Rothenberger Romax Compact III AMP Press Machine Set U16-20-25mm 18V with 1 x 2.0Ah Battery, Charger & Carry Case 1000004285

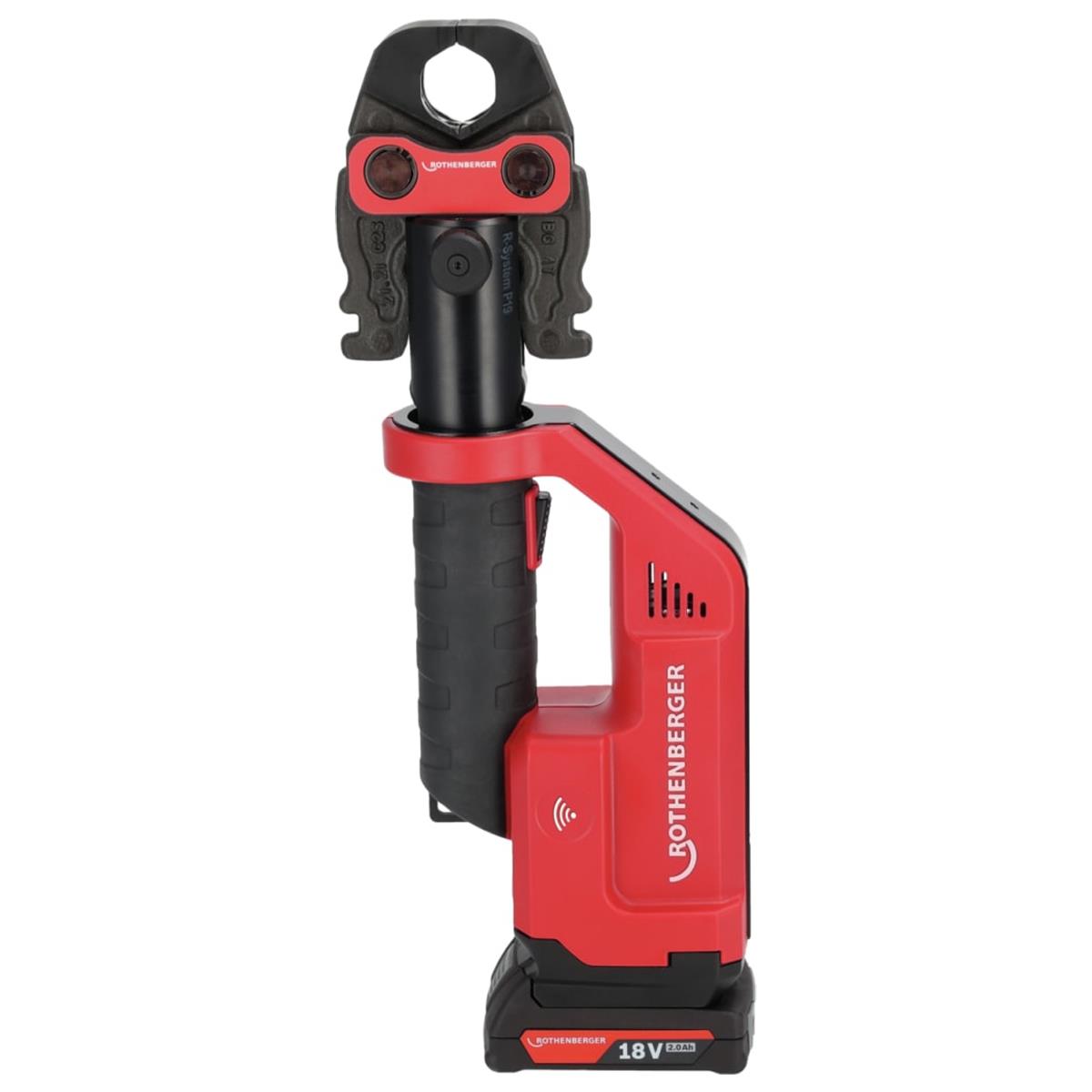

The ROMAX Compact III AMPShare includes pressing jaws of different contours in various sizes. The electro-hydraulic, radial pressing machine ROMAX COMPACT III AMPShare is ideally suited for system-compliant pressing of fittings up to 35 mm (metal) or 40mm (plastic), even in constrained positions. The ROMAX COMPACT III AMPShare presses fittings with a piston force of 19 kN and a press cycle of 3 seconds. Constant pressing force over the complete pressing cycle is guaranteed by Constant Force Technology (CFT). Real-time data acquisition of relevant machine parameters and convenient creation of press protocols directly on site via ROTHENBERGER App by CONNECTIVITY. The optimized compact design and perfectly balanced weight make installation work over longer stages a breeze.
Features:
Connected: Pressing data acquisition in real time via ROTHENBERGER App.
Fast: 3-second pressing by means of effective pressure build-up.
Strong: Presses fittings up to Ø 35 mm (metal) / Ø 40 mm (plastic).
Comfortable: Perfectly balanced center of gravity allows for comfortable work.
Handy: Only 2.5 kg weight distributed over 34 cm length.

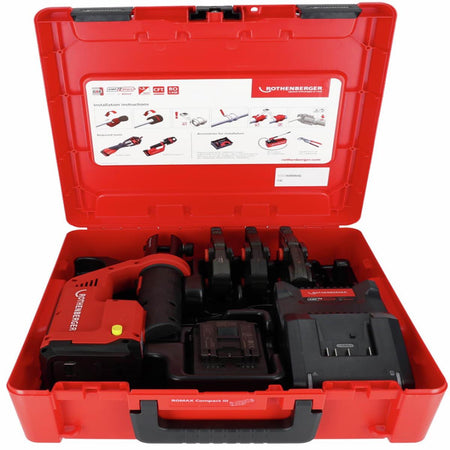

Comes With:
ROMAX COMPACT III
Compact pressing jaw, TH, 16mm
Compact pressing jaw, TH, 20mm
Compact pressing jaw, TH, 25mm
18 V / 2 Ah battery
Charger UK
Operating instructions ROMAX COMPACT III
ROCASE
Product Specification:
Part number: 1000004285
Barcode: 4004625555125
Voltage: 18V
Working area diameter mm: 12 - 40 mm
Working area Temperature: -10 – 60 °C
Battery number: 1 Piece
Battery system: Li-Ion / Li-Po battery (rechargeable)
Battery type: Rechargeable
Press jaw system: Press jaw Compact
Type battery: Li-Power
Piston force: 19 kN
Time press cycle with unit of measurement: 3sec
Capacity battery with unit of measurement: 2Ah
Net weight with unit of measure: 9.250kg
Gross weight with unit of measure: 9,620kg
Packaging Length with unit of measurement: 400,000mm
Packaging Width with unit of measurement: 400,000mm
Shipping weight with unit of measure: 9,620kg
Packaging height with unit of measurement: 145,000mm
**images for illustrative purposes only – please refer to description and specification for full details of product**
