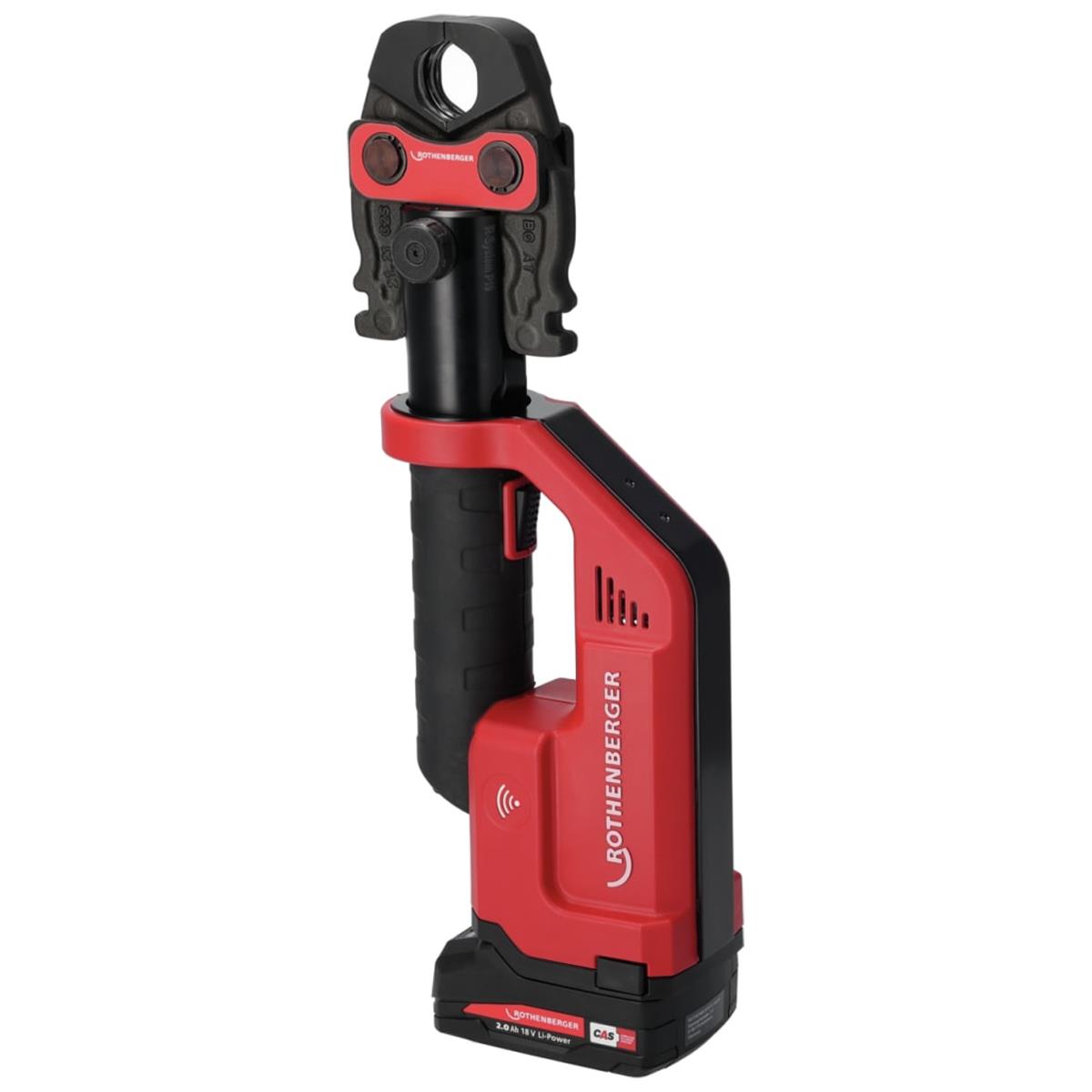

Rothenberger Romax Compact3 Set 18V M15-22-28 & 2AH Battery With UK Plug in Case 1000004332

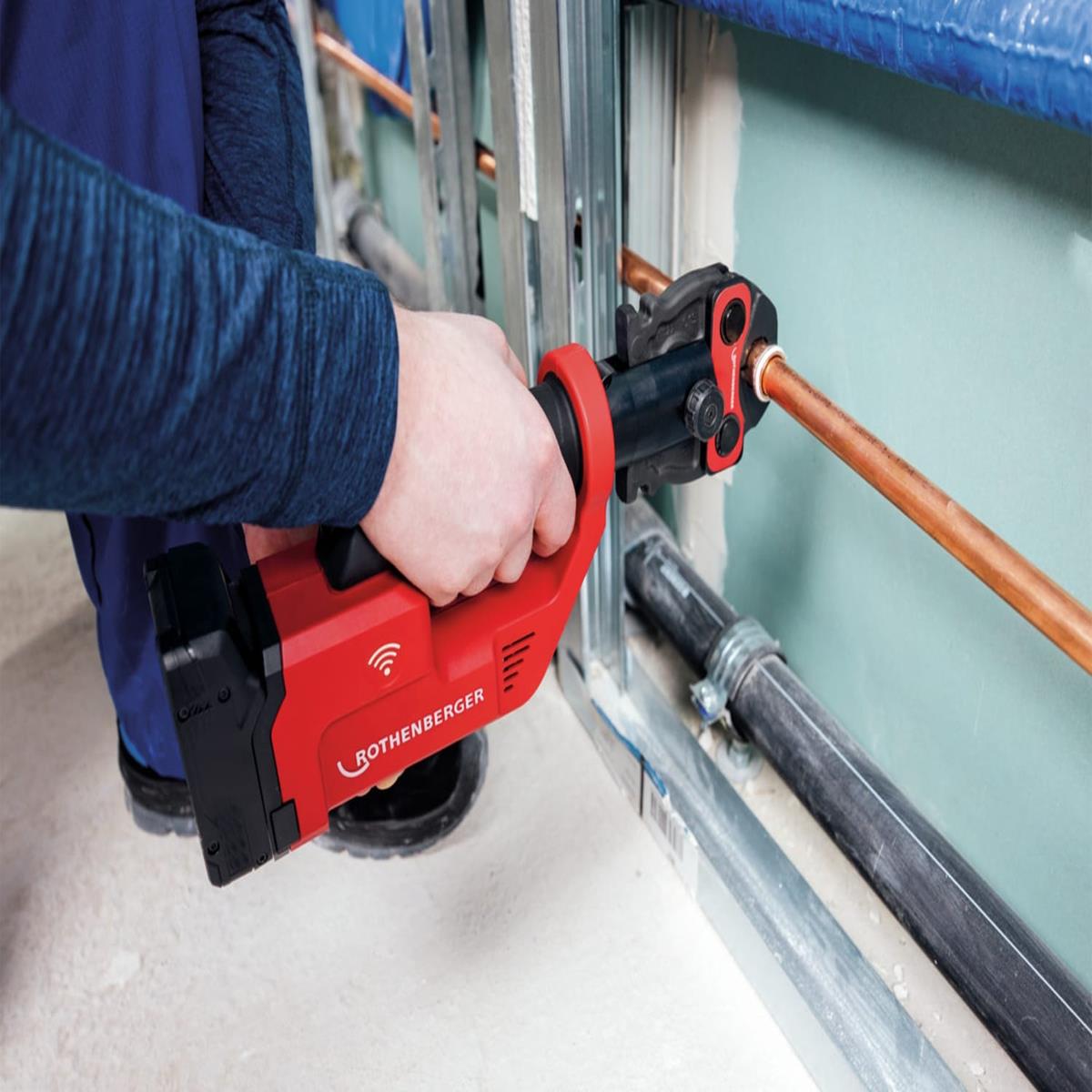

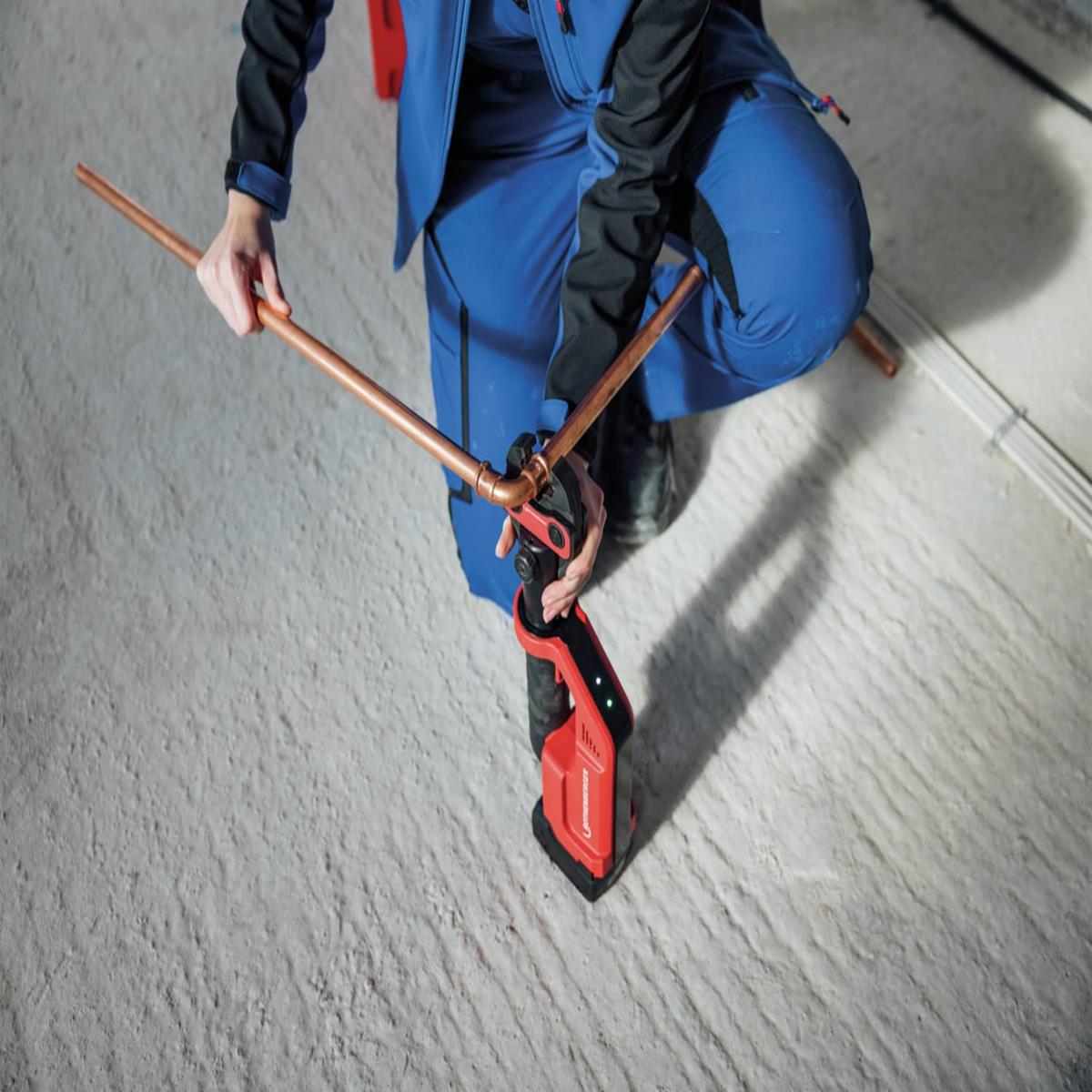

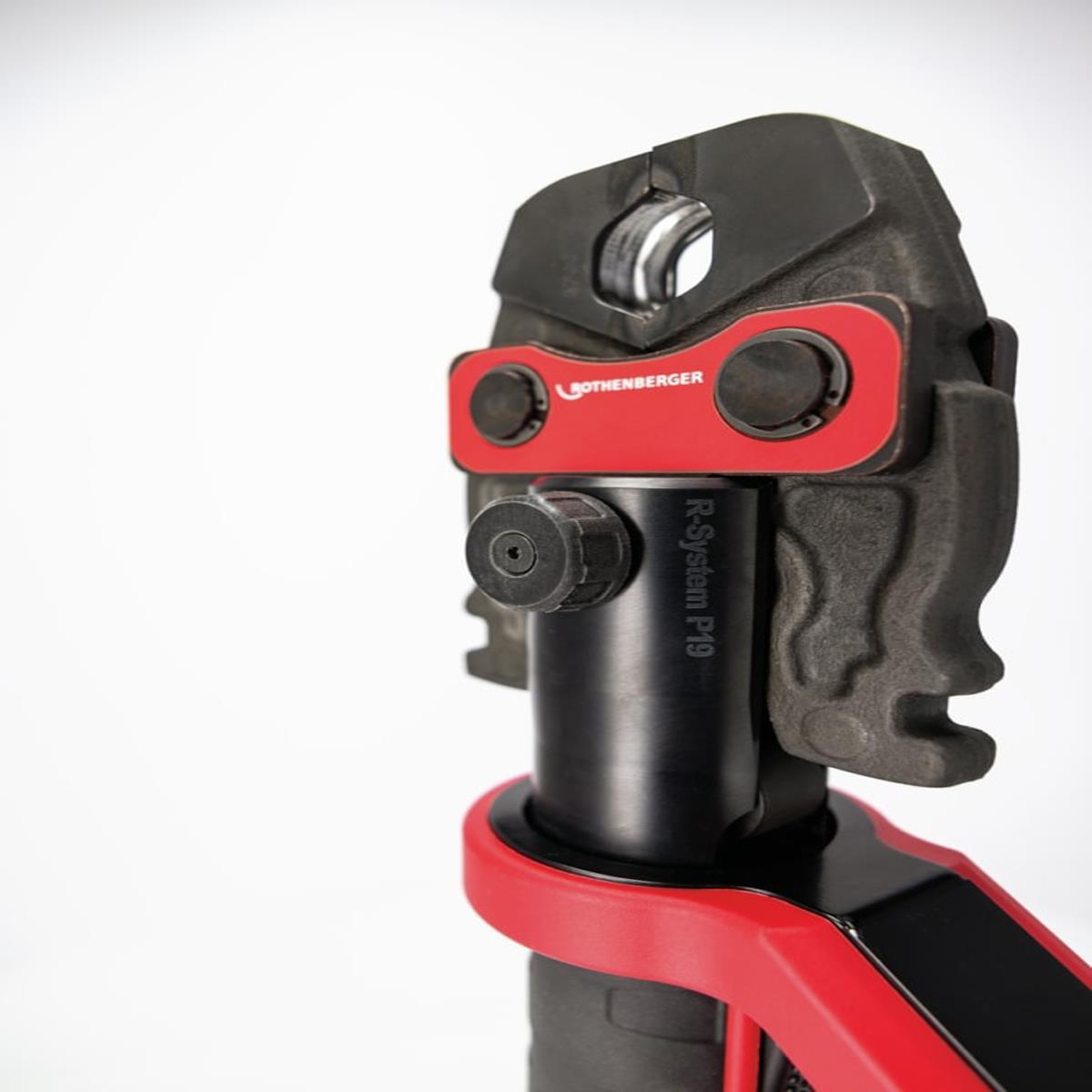

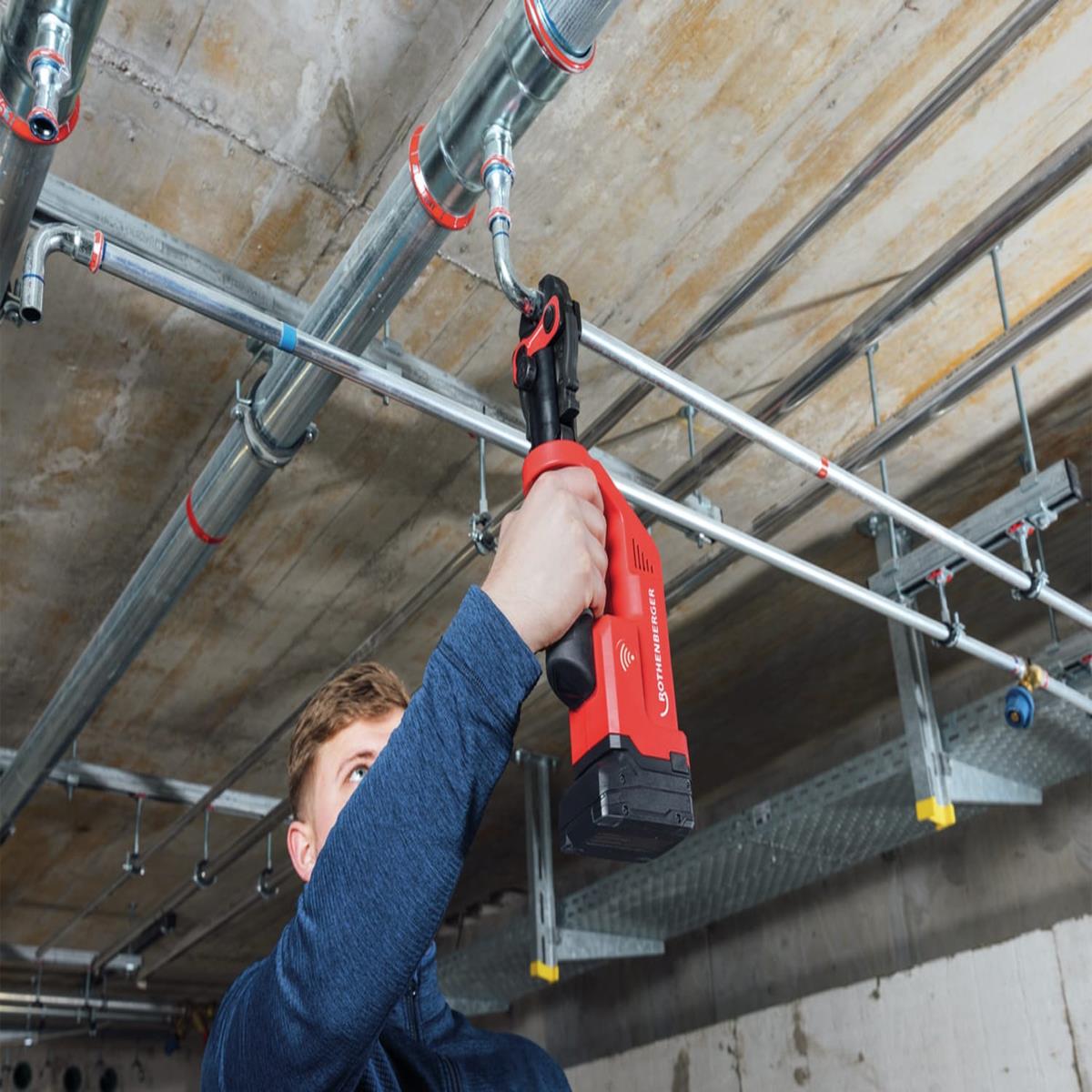

The ROMAX Compact III includes press jaws of different contours in various sizes. The electro-hydraulic, radial Press Machine ROMAX COMPACT III is ideally suited for system-compliant pressing of fittings up to 35 mm (metal) or 40mm (plastic), even in constrained positions. The ROMAX COMPACT III presses fittings with a piston force of 19 kN and a press cycle of 3 seconds. Constant pressing force over the complete pressing cycle is guaranteed by Constant Force Technology (CFT). Real-time data acquisition of relevant machine parameters and convenient creation of press protocols directly on site via ROTHENBERGER App by CONNECTIVITY. The optimized compact design and perfectly balanced weight make installation work over longer stages a breeze.
Features:

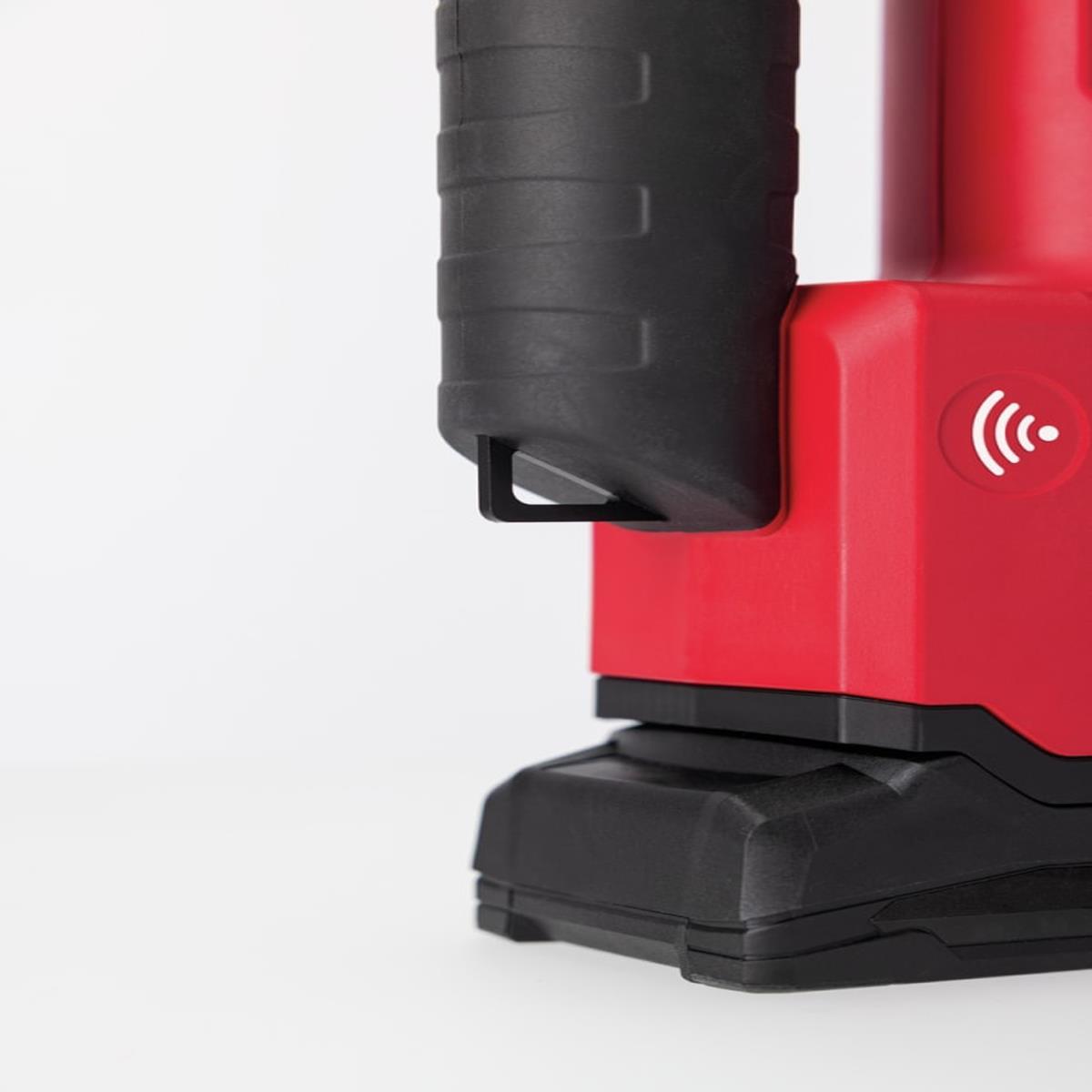

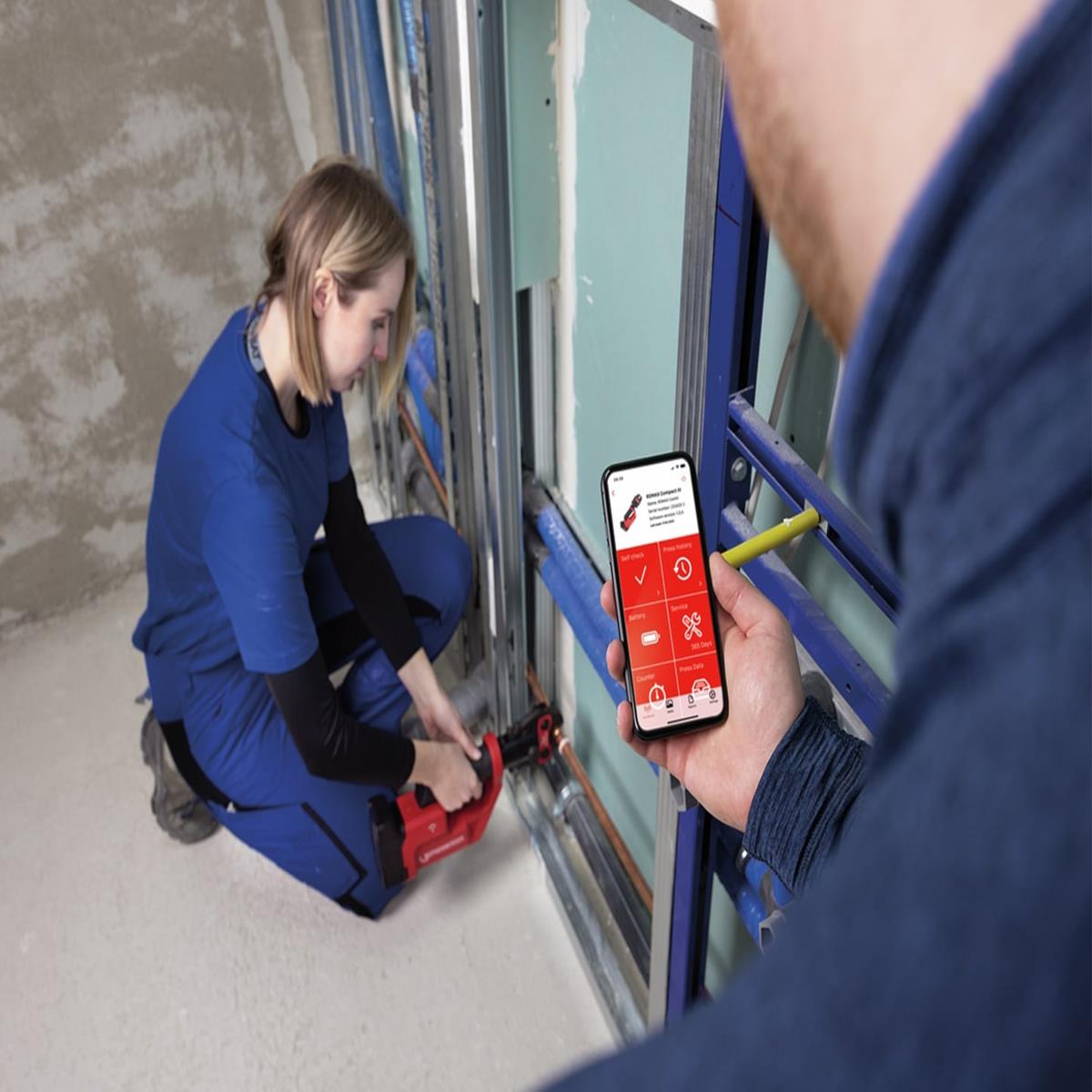

Connected: Pressing data acquisition in real time via ROTHENBERGER App.
Fast: 3-second pressing by means of effective pressure build-up.
Strong: Presses fittings up to Ø 35 mm (metal) / Ø 40 mm (plastic).

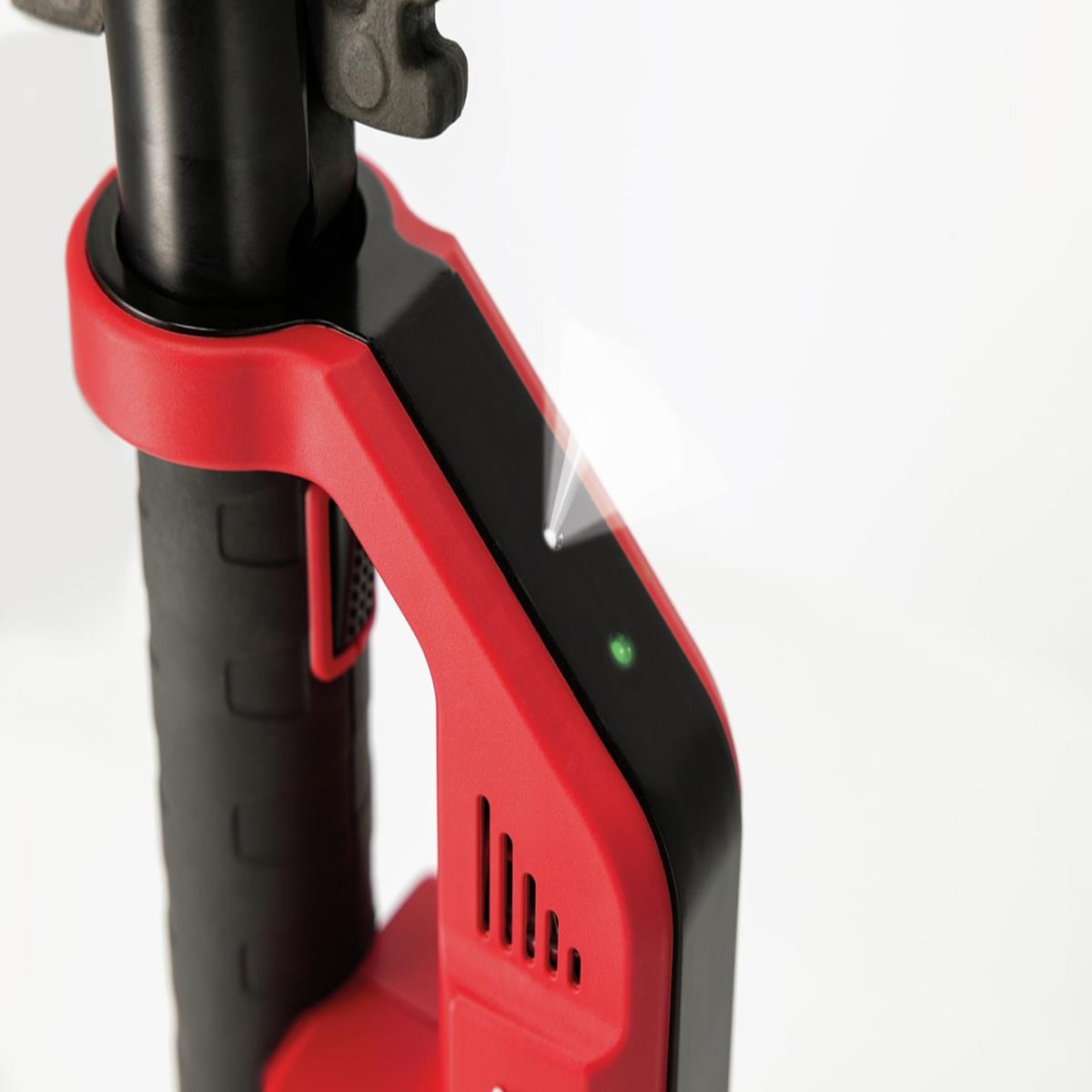

Comfortable: Perfectly balanced center of gravity allows for comfortable work.
Handy: Only 2.5 kg weight distributed over 34 cm length.
Comes With:

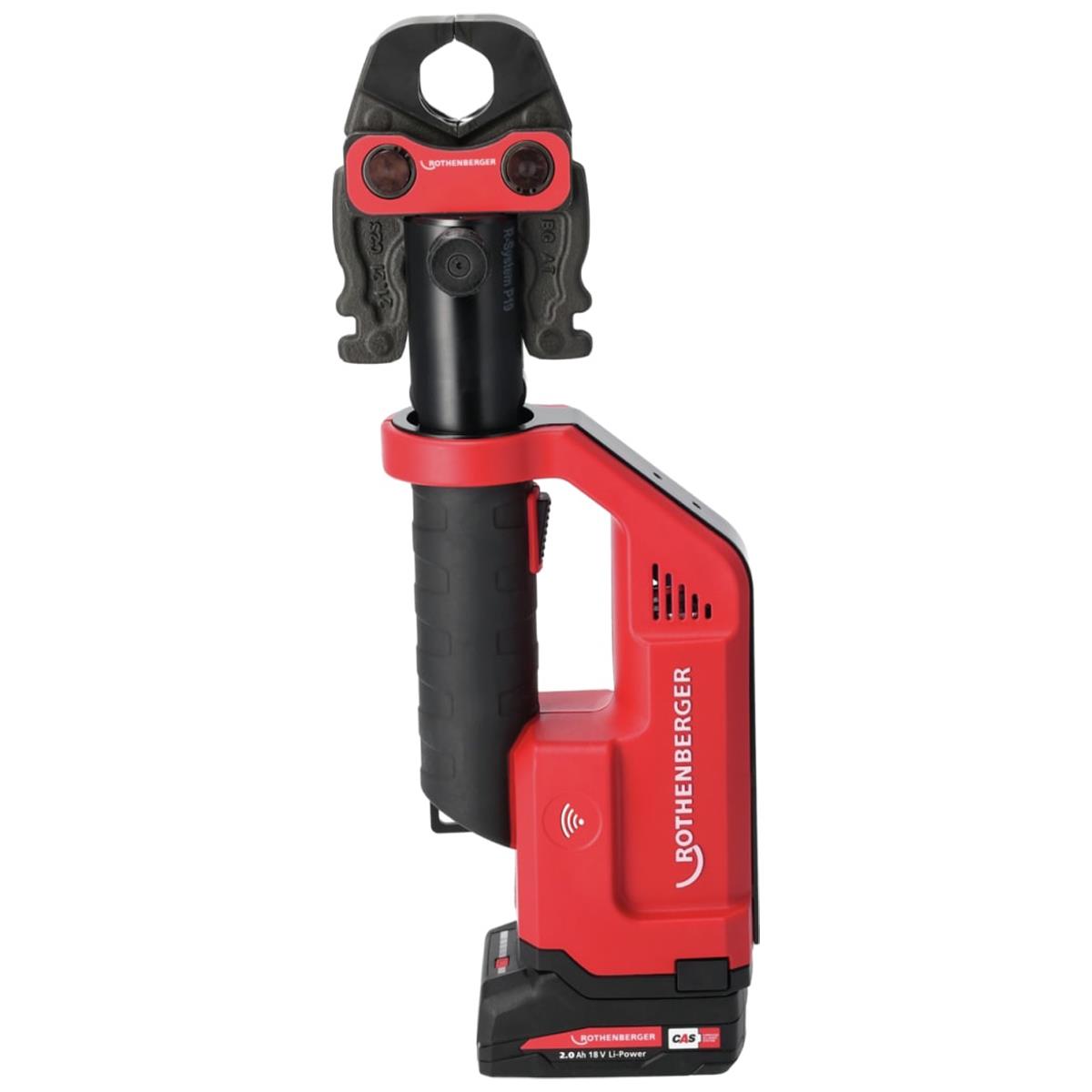

ROMAX COMPACT III
Compact Press Jaw, SV, 15mm
Compact Press Jaw, SV, 22mm
Compact Press Jaw, SV, 28mm
18 V / 2 Ah battery
Charger UK
Instruction manual ROMAX Compact III
ROCASE
Product Specification:
Part number: 1000004332
Barcode: 4004625556351
Voltage: 18V
Working area diameter mm: 12 - 40 mm
Working area Temperature: -10 – 60 °C
Battery number: 1 Piece
Battery system: Li-Ion / Li-Po battery (rechargeable)
Battery type: Rechargeable
Press jaw system: Press jaw Compact
System battery: CAS
Type battery: Li-HD
Piston force: 19 kN
Time press cycle with unit of measurement: 3 sek
Capacity battery with unit of measurement: 2 Ah
Net weight with unit of measure: 9,260 kg
Gross weight with unit of measure: 9,625 kg
Packaging Length with unit of measurement: 400,000 mm
Packaging Width with unit of measurement: 400,000 mm
Shipping weight with unit of measure: 9,625 kg
Packaging height with unit of measurement: 145,000 mm
**images for illustrative purposes only – please refer to description and specification for full details of product**
