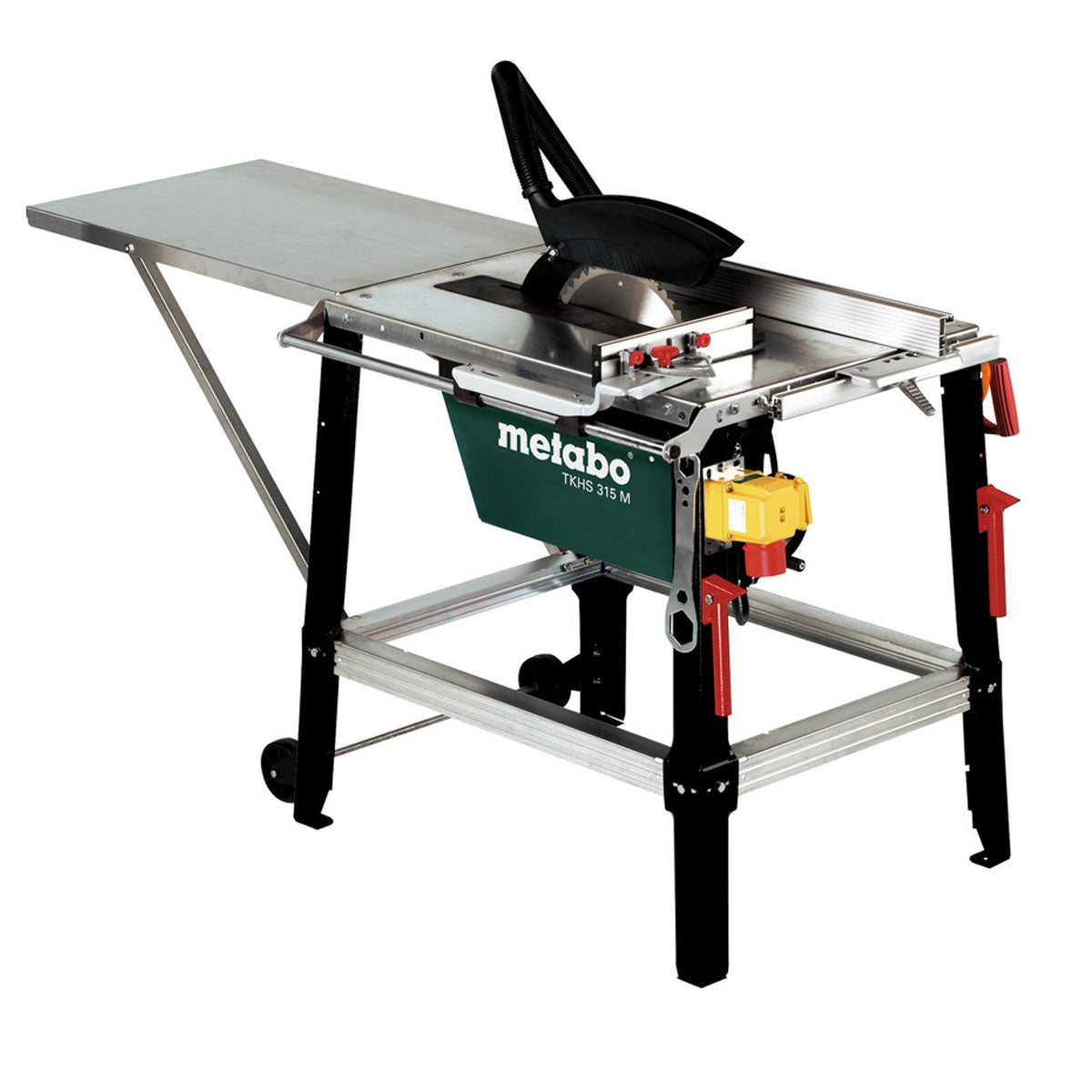

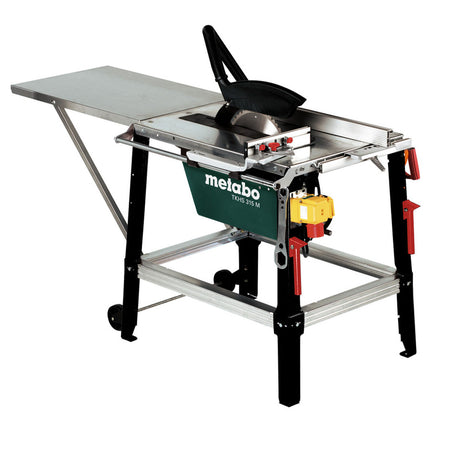

Metabo TKHS 315 M Table Saw 2500W/240V 0103153038
The Metabo TKHS 315 M – 2,5 WNB 0103153038 is a robust 2.5 kW table saw aimed at demanding woodworking tasks. It handles a 315 mm blade with a cutting depth of about 85 mm at 90°, and about 53 mm at 45°. The machine offers a rip width of up to 340 mm and includes features like blade tilt to 45°, restart protection, and stable guide systems. With a solid steel construction and generous support surfaces (800 × 600 mm), it’s built for precision and durability.
Features:
Restart protection: prevents unintentional start-up after power supply interruption
Precise, powerful table saw in professional configuration – quick to adapt for every application
Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites
Quiet induction motor with motor brake and overload protection - maintenance-free and robust.

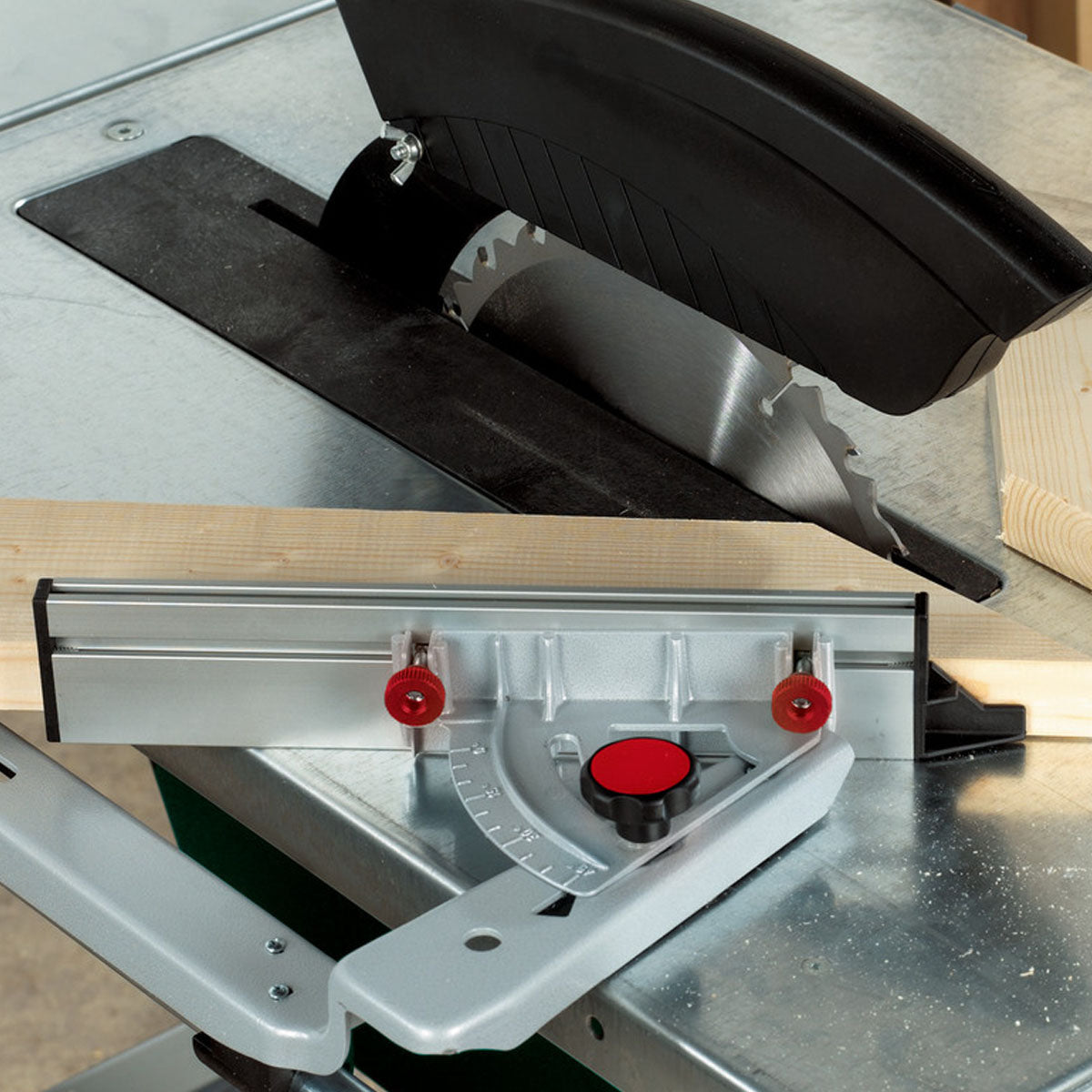

Mitre fence with linear stop, can also be used a sliding table
Sturdy rip fence with quick fastening
Freely height-adjustable saw blade

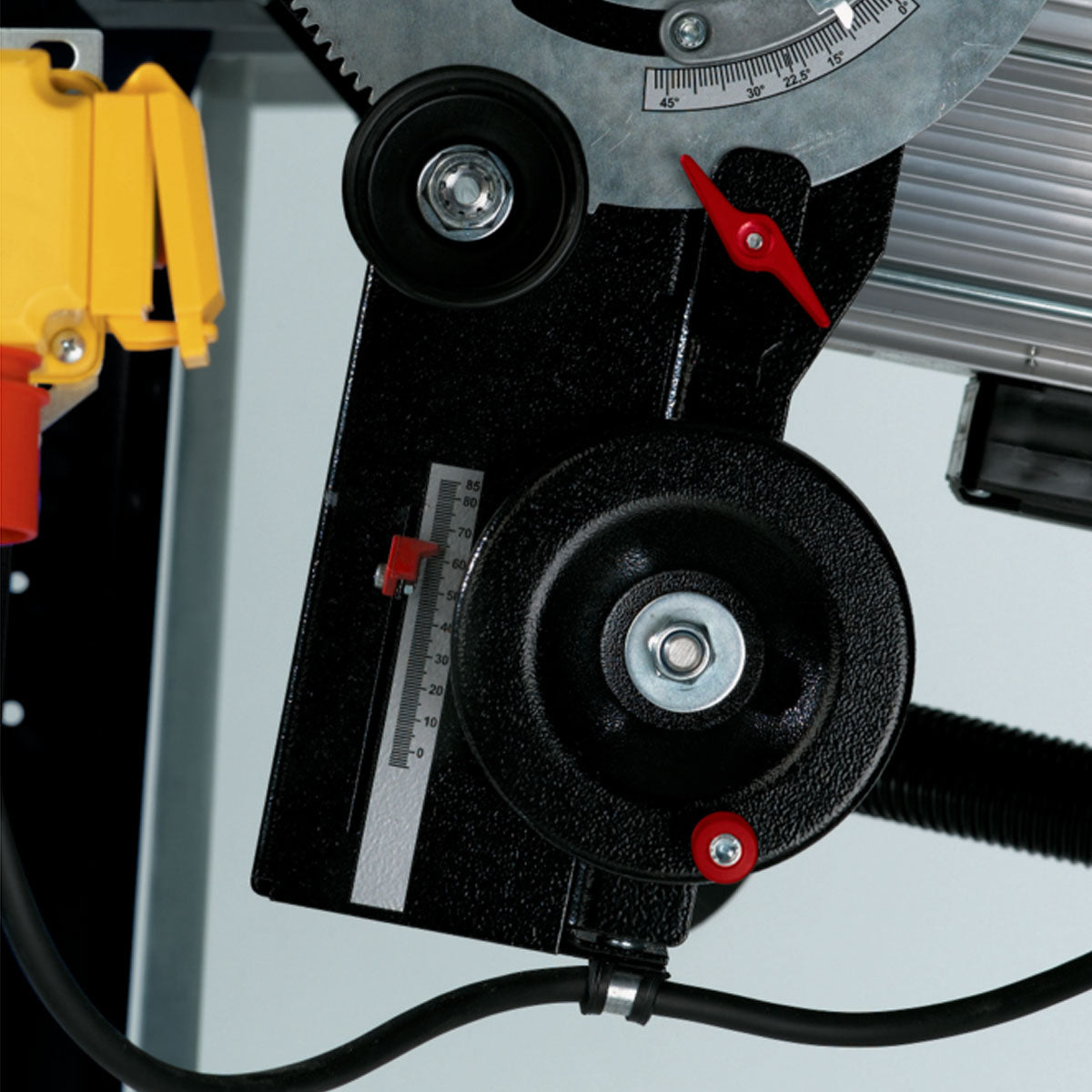

Comfortable setting of the saw blade inclination from the front
Sturdy, powder-coated sheet steel design and galvanised table-top
Foldable table length extension
Frame and motor pre-mounted
Comes with:
1 x Carbide saw blade with alternately bevel-ground tips (24 teeth)
1 x Wheel set incl. handles
1 x Rip Fence
1 x Mitre Fence
1 x Table extension (600 x 800 mm)
1 x Chip and Dust Extraction Unit
1 x Push stick
Product Specification:
Part Number: TKHS 315 M
Barcode: 4003665403380
Dimensions: 1700 x 700 x 1000 mm
Max. support surface: 800 x 600 mm
Working height: 850 mm
Cutting height: 0 - 85 mm
Maximum cutting height 90/45°: 85 / 53 mm
Maximum cutting width at rip fence: 340 mm
Maximum material width at mitre fence: 250 mm
No-load speed: 2995 rpm
Cutting speed: 50 m/s
Saw blade: 315 x 30 mm
Saw blade swivel range: 0 - 45 °
Mains voltage: 220 - 240 V
Rated input power: 2500 W
Weight: 75 kg
Noise emission
Sound pressure level: 97 dB(A)
Sound power level (LwA): 106 dB(A)
Uncertainty of measurement K: 4 dB(A)
**images for illustrative purposes only – please refer to description and specification for full details of product**
