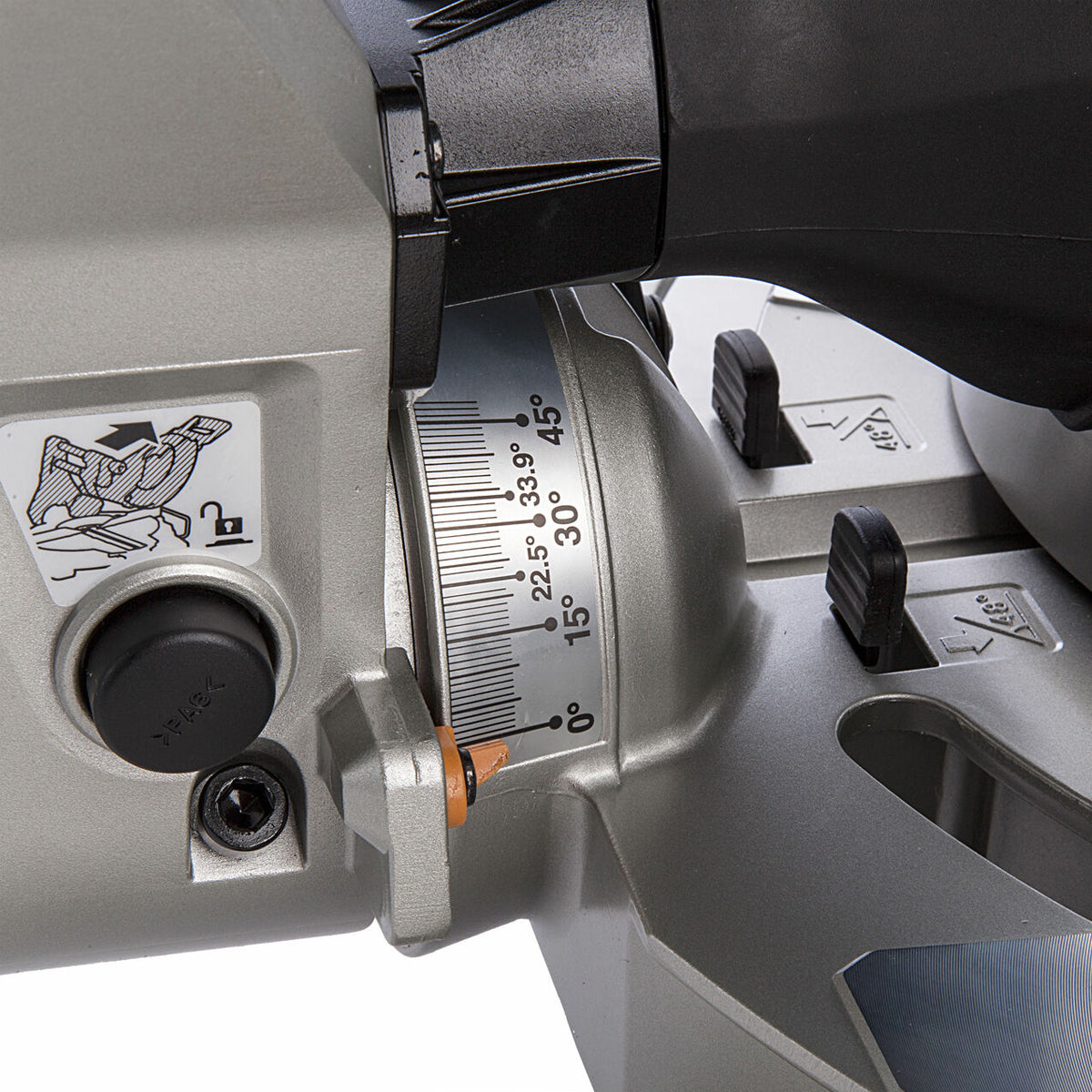

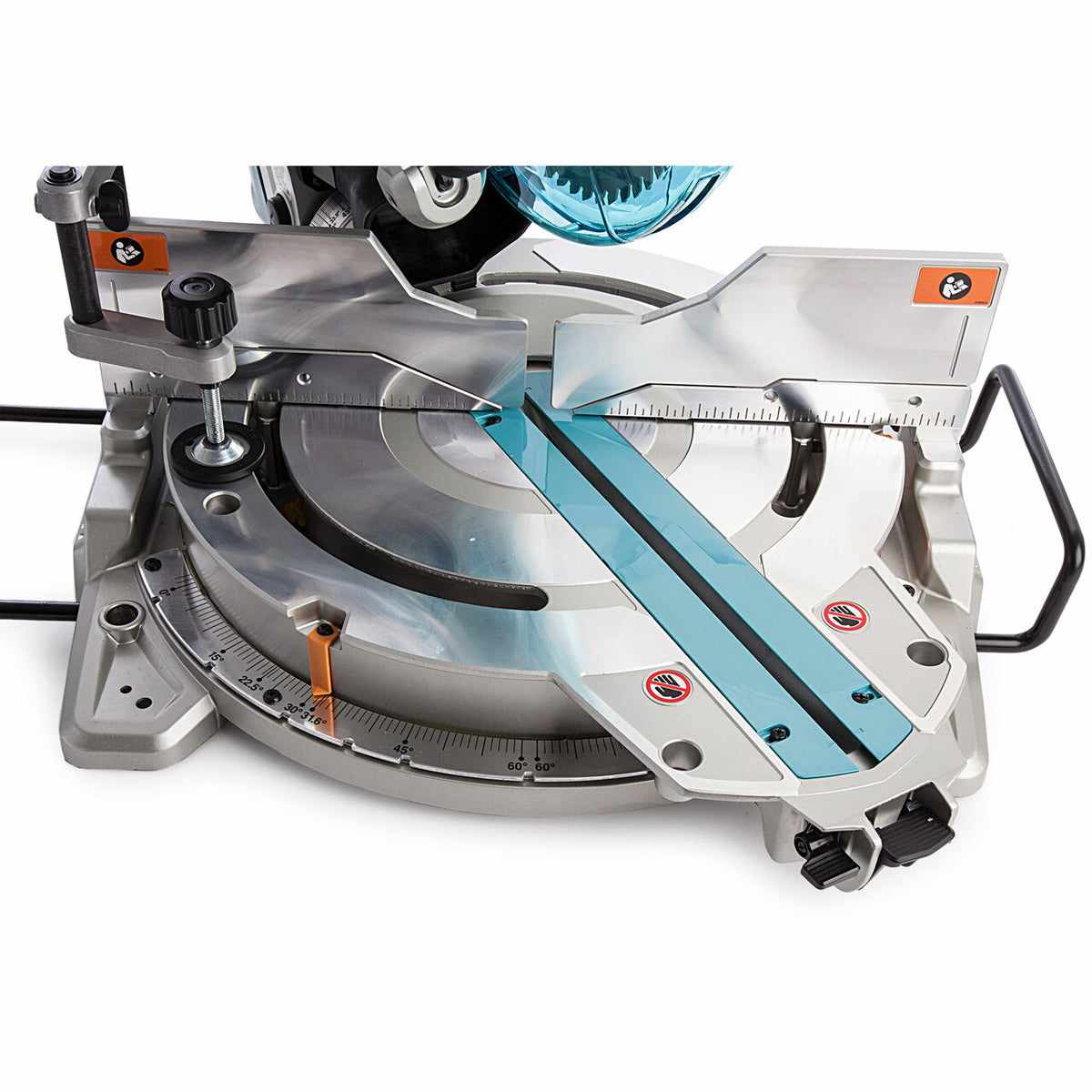

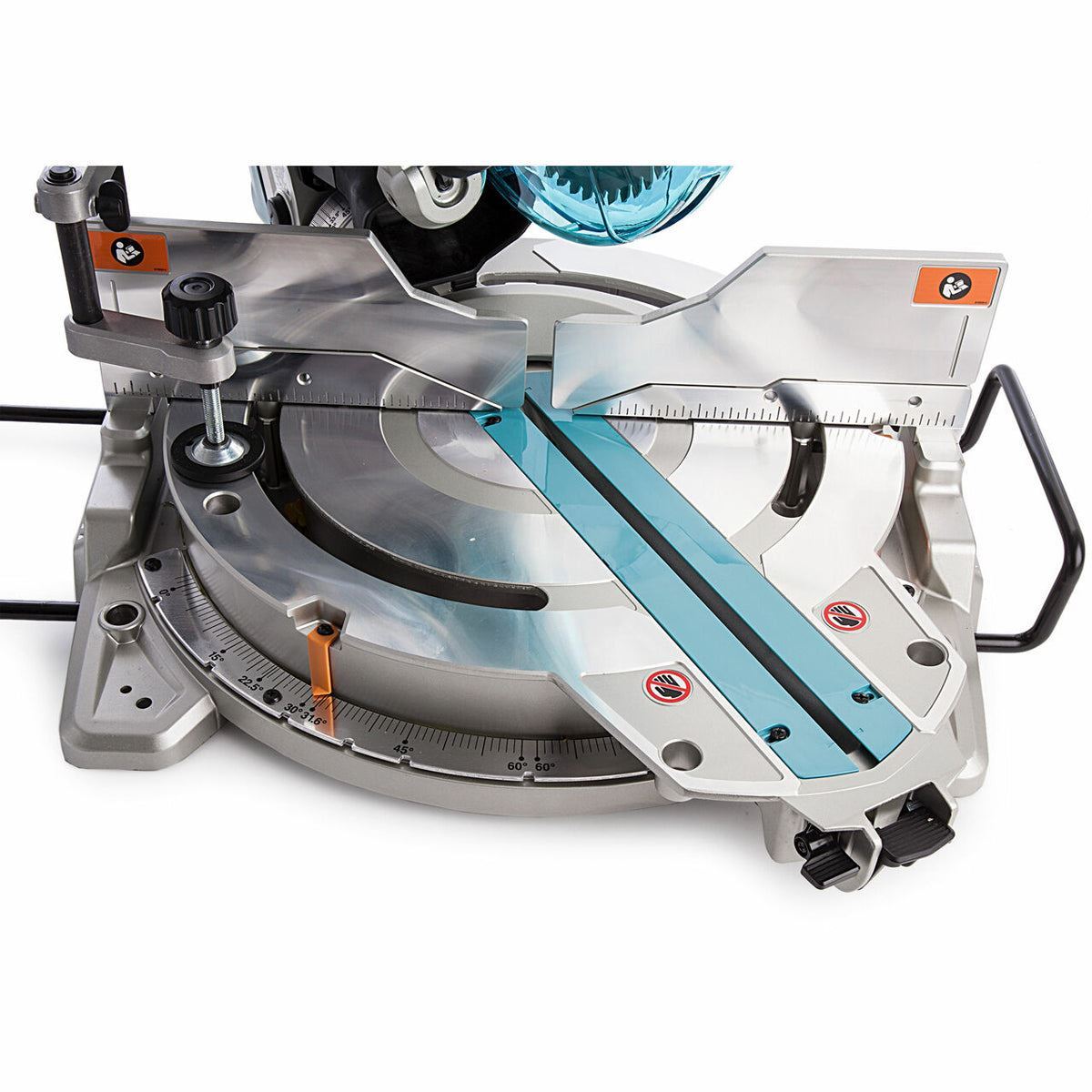

Rail-forward design enables to be placed against a wall for maximising work space Holders are provided on both sides of the tool to hold long workpieces horizontally Bevels 0° - 48°, left and right Mitre 0 - 60°, left and right. Positive Mitre stops at; 0°, 15°, 22.5°, 31.6°, 45° and 60° left or right Soft start for smooth start-ups Electronic speed control maintains constant speed under load for smoother, higher quality cutting Electric brake for maximum productivity and increased operator safety
Comes With:
1 X Dust Bag ( 122852-0 ) 1 X Vertical Vise Assembly ( 126617-2 ) 1 X Accessory Set ( 193026-0 ) 1 X Tipped Saw Blade ( 721794-1 ) 1 X Hex Wrench 6 ( 781044-6 )
Product Specification:
Part Number: LS1019/1 Barcode: 0088381843966 Capacity 90°: 91 x 279 / 68 x 310 mm Continuous Input Power: 1510 W No load speed: 3200 min⁻¹ Capacity 45°: 91 x 197 / 68 x 218 mm Capacity 45° left: 58 x 279 / 42 x 310 mm Bevel capacity right 45°: 43 x 279 / 29 x 305 mm Max. Bevel Range (Left): 48 / 48 º Max. Mitre Range (Left): 60 / 60 º Blade Diameter: 260 mm Bore Size (Arbor Diameter): 30 mm Power Supply Cord: 2,5 m Sound Power Level (LWA): 101 dB(A) Sound Pressure Level (LpA): 91 dB(A) Noise Uncertainty (K Factor): 3 dB(A) Vibration Level (3 axes): ≤ 2,5 m/s² Vibration Uncertainty (K Factor): 1,5 m/s² Weight Without Cable: 26,1 kg Product Dimensions (L x W x H): 805 x 644 x 660 mm Vacuum cleaner connection Ø in / out: 35/40 mm
**images for illustrative purposes only – please refer to description and specification for full details of product**
