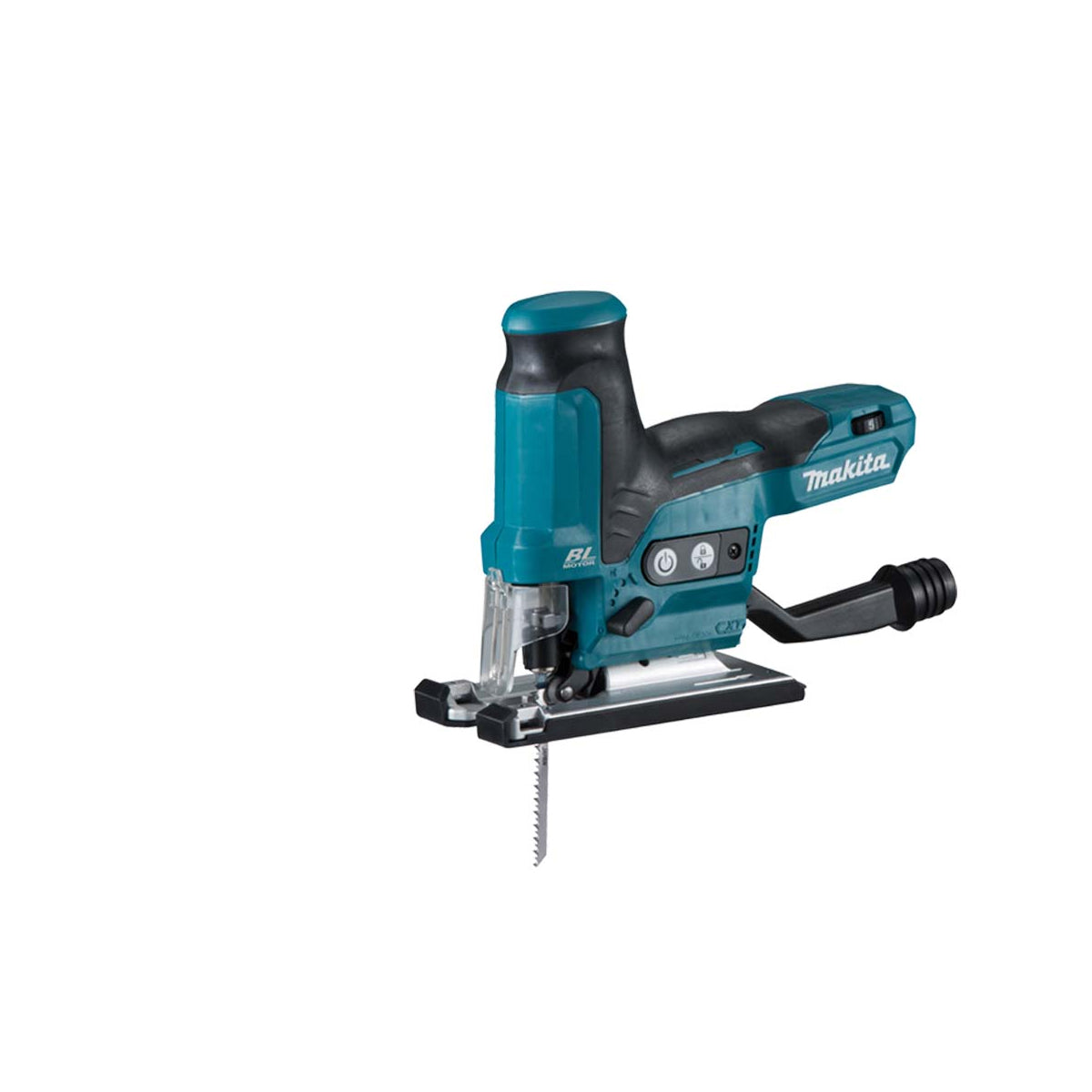

Makita JV102DSAJ 12V max CXT Jigsaw With 2 x 2.0Ah Batteries, Charger & Case
This light brushless jigsaw features a compact design with three-stage pendulum action and tool-less blade change. With adjustable speeds from 800 to 3,000 RPM and a cutting capacity of 90 mm in wood and 10 mm in steel, it’s ideal for various projects.
Features:
Three-Stage Pendulum Action: Provides versatility for different cutting styles.
Adjustable Engine Speed: Speed settings from 800 to 3,000 RPM to suit various materials.
Stroke Length: 23 mm for effective cutting performance.
Max Cutting Capacity: Cuts up to 90 mm in wood and 10 mm in steel.
Tilting Base: Enables bevel cuts from 0° to 45° for angled applications.
Brushless Motor: Maintenance-free design ensures long-lasting performance.
Compact and Lightweight Design: Easy to handle, reducing operator fatigue.
Dust Extraction Capability: Connects to a vacuum hose for cleaner working conditions.
Battery Protection System: Automatically shuts off power when the battery is low, prolonging tool life.

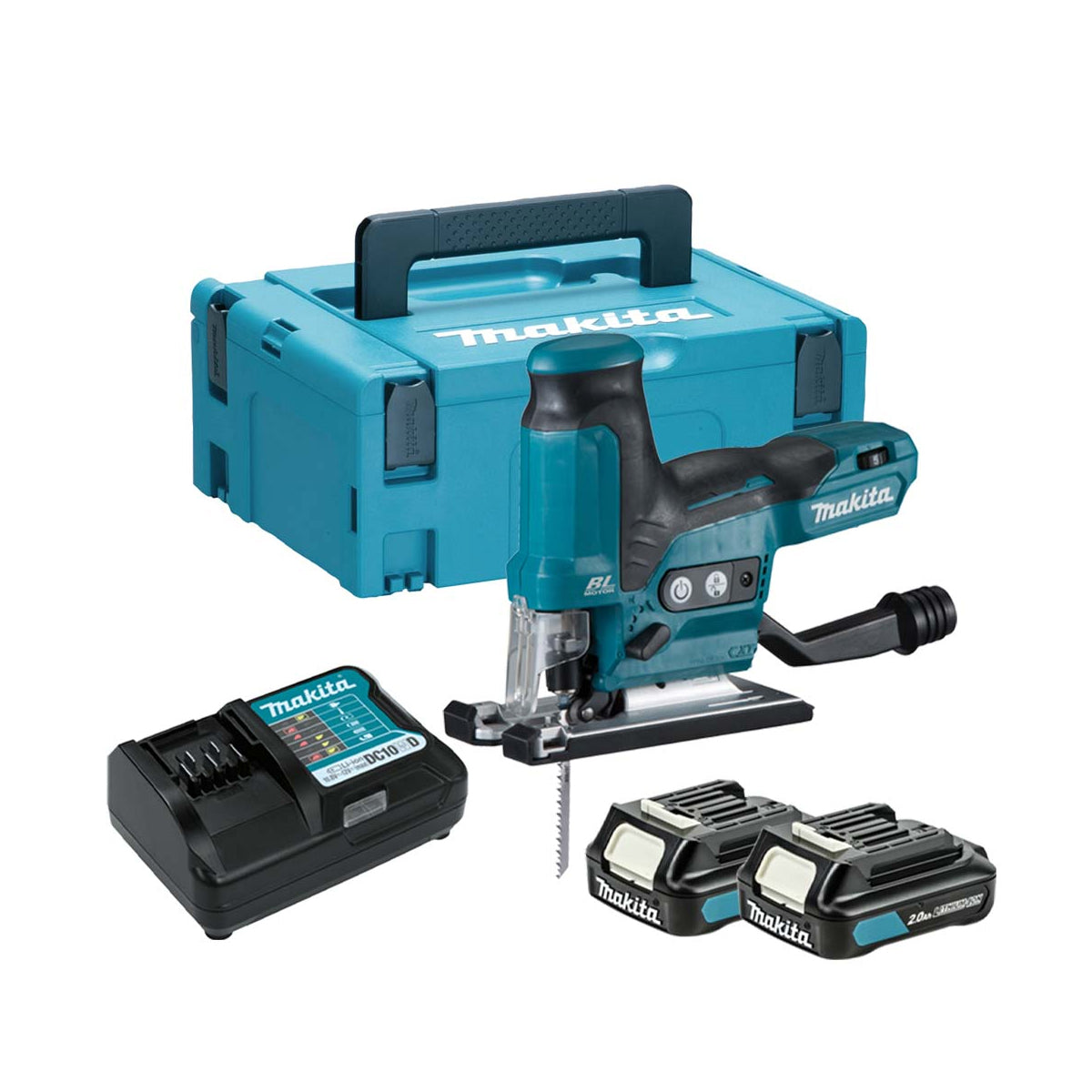

Comes With:
1 x Battery Cover CXT® ( 456128-6 )
1 x Dust nozzle ( 457801-1 )
1 x Cover Plate ( 457867-1 )
1 x Dust Cover ( 458191-5 )
1 x Hex Wrench 3Mm ( 783201-2 )
2 x Battery CXT® 2,0 Ah ( BL1021B )
1 x Battery Charger CXT® ( DC10SB )

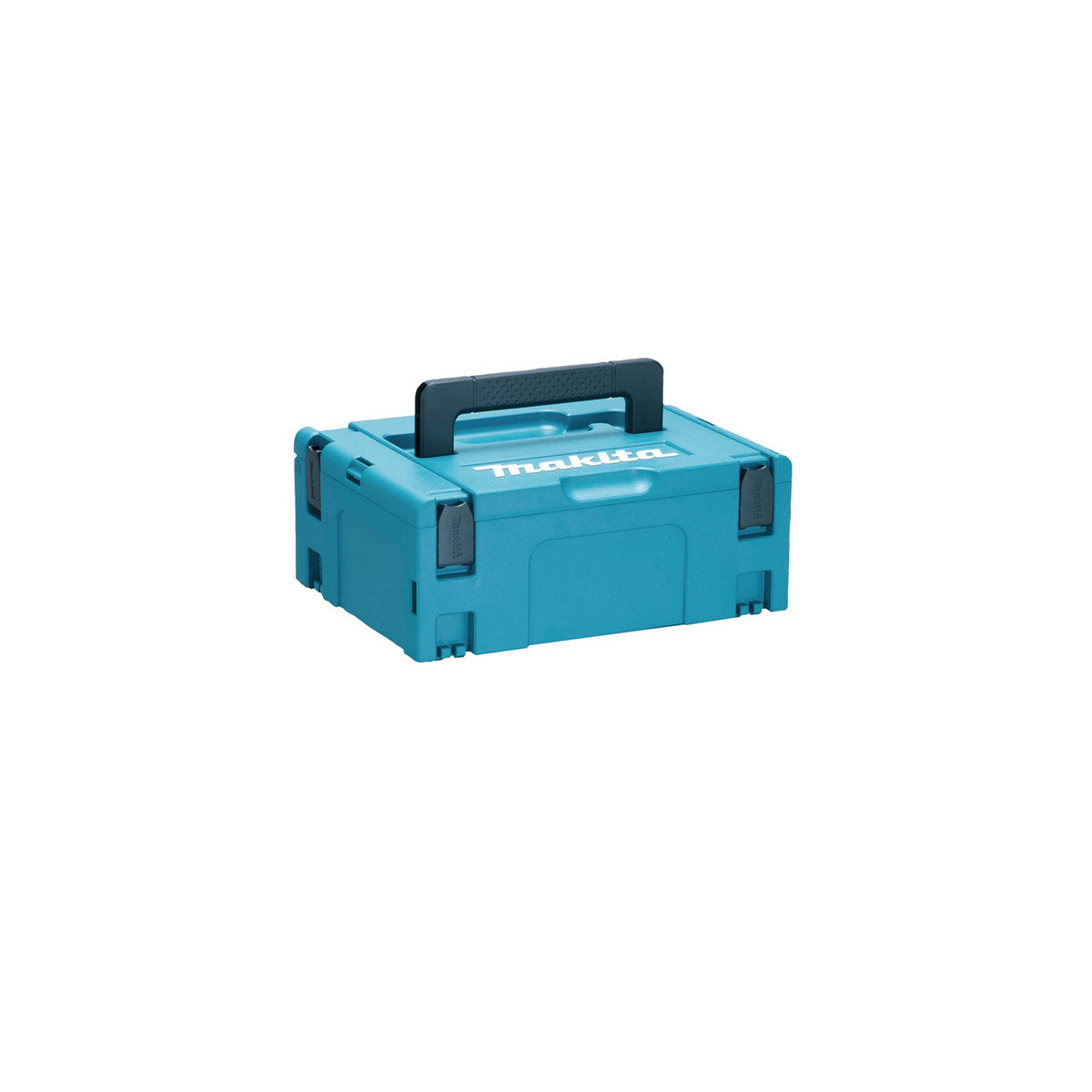

1 x Makpac case (1) ( 821549-5 )
Product Specification:
Part no: JV102DSAJ
Barcode: 0088381848848
CXT Battery: Yes
Brushless Motor: Yes
Length of Stroke: 23 mm
Max. Cutting Capacity in Wood (90°): 90 mm
Max. Cutting Capacity in Steel (90°): 10 mm
Capacity Aluminium: 20 mm
Orbital Action: Yes
Sound Power Level (LWA): 96 dB(A)
Sound Pressure Level (LpA): 85 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Tool weight with battery: 1,8 - 1,9 kg
Product Dimensions (L x W x H): 237 x 76 x 186 mm
Max. Bevel Range (Left): 45 º
Nominal Battery Voltage: 12 V
Max Output Power: 280 W
Strokes per Minute (SPM): 800 - 3000 min⁻¹
Vibration Level, Cutting Sheet Metal: 9,5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1,5 m/s²
Vibration Level, Cutting Boards: 11,5 m/s²
Vibration Uncertainty (K Factor), Cutting Boards: 1,5 m/s²
Vacuum cleaner connection Ø in / out: 23/28 mm
**images for illustrative purposes only – please refer to description and specification for full details of product**
