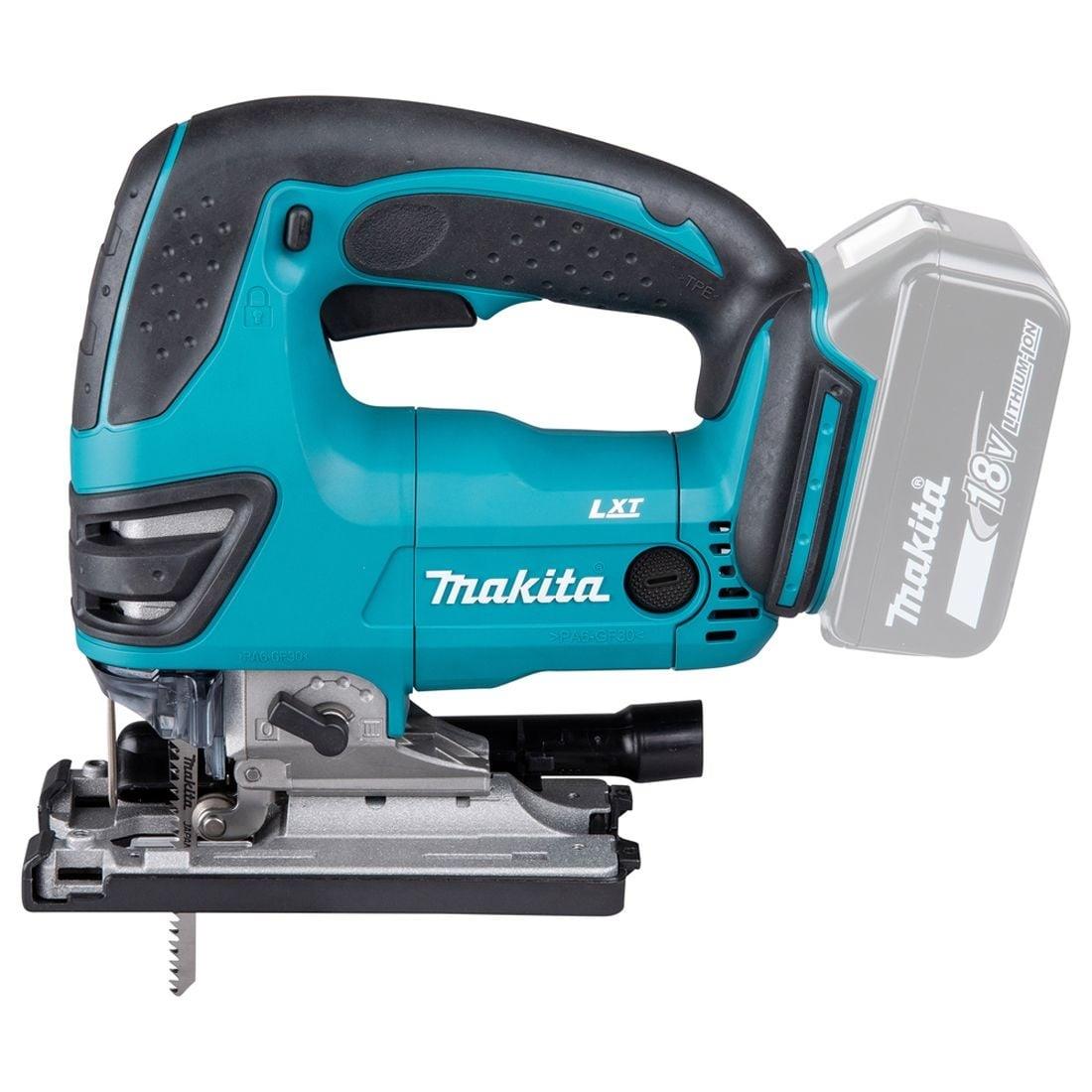

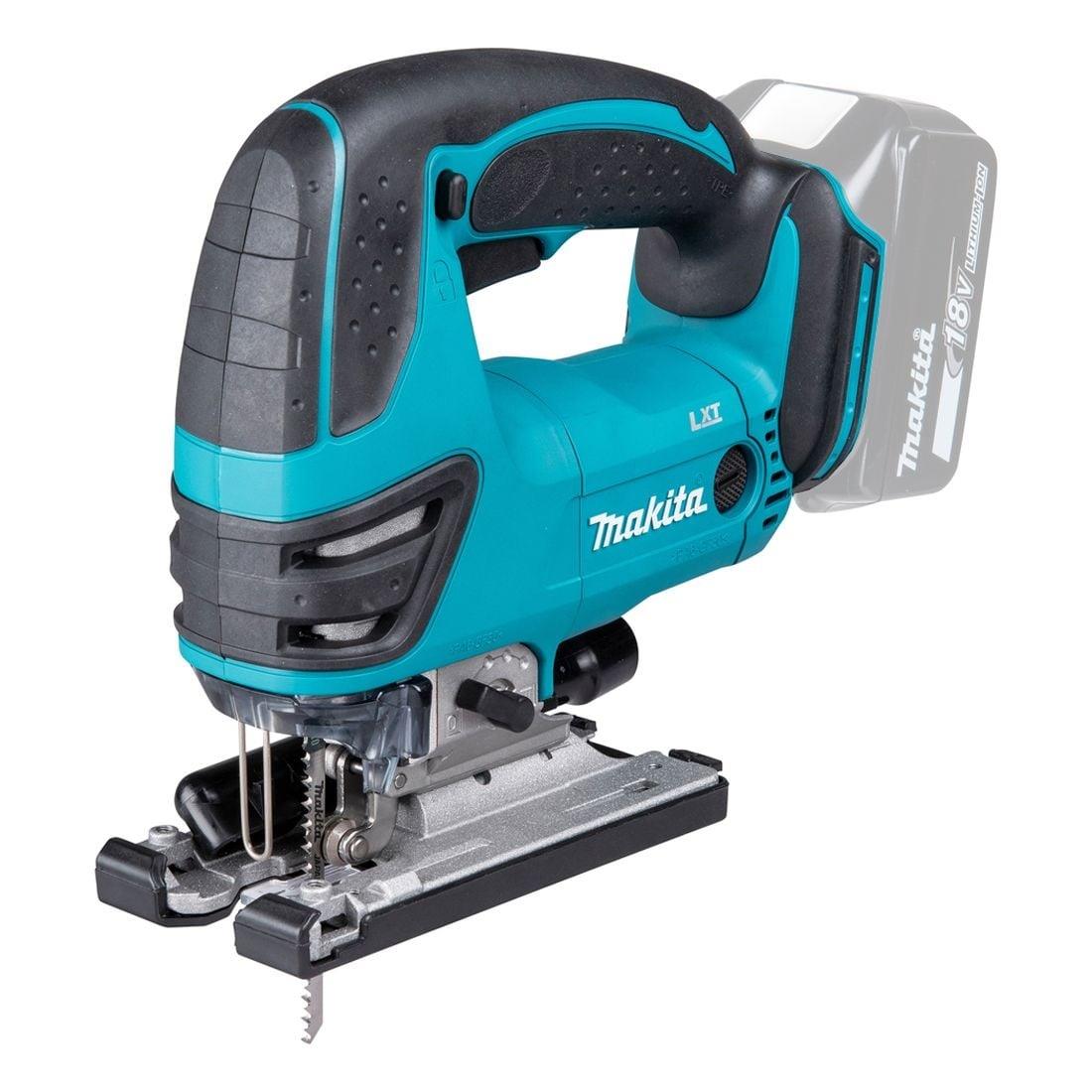

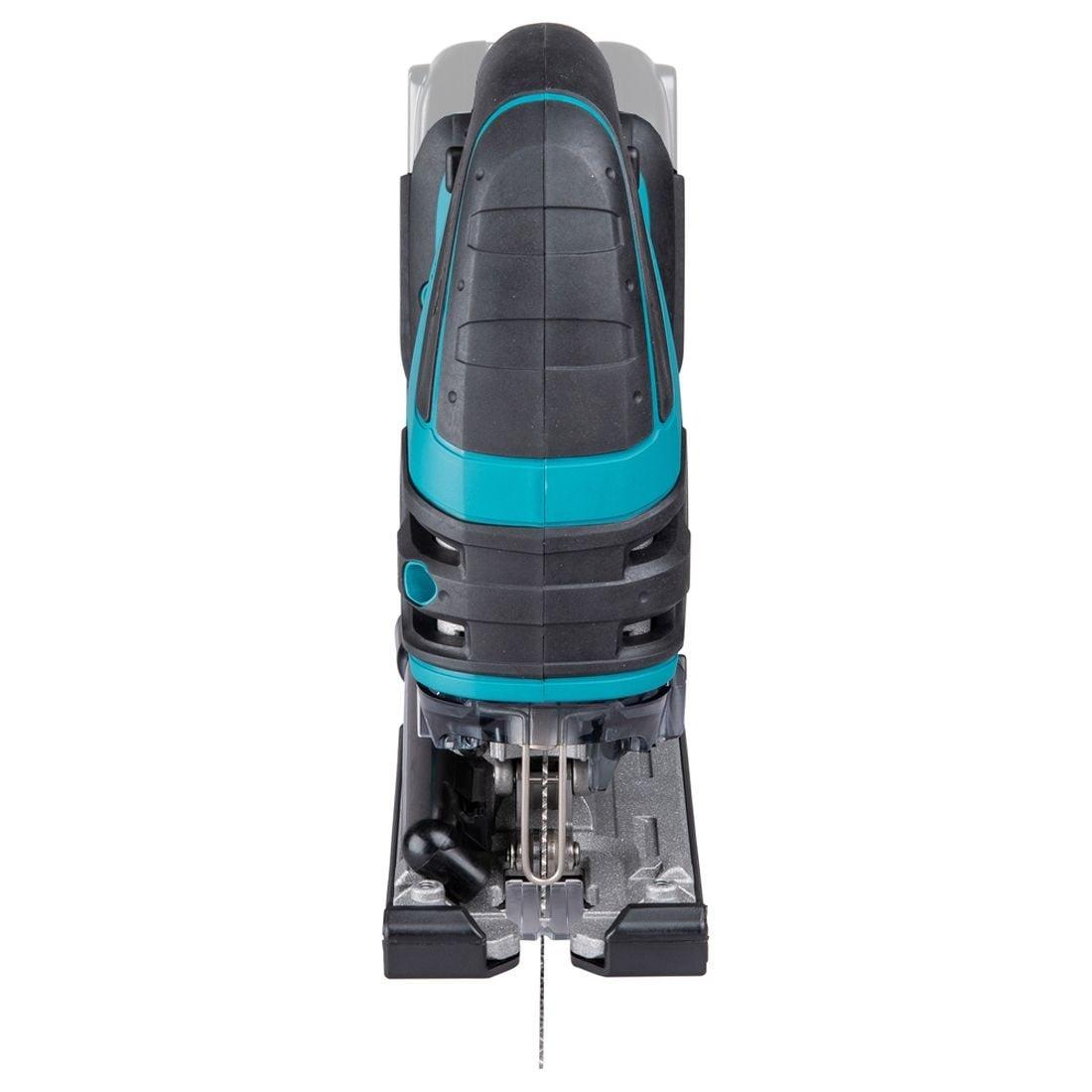

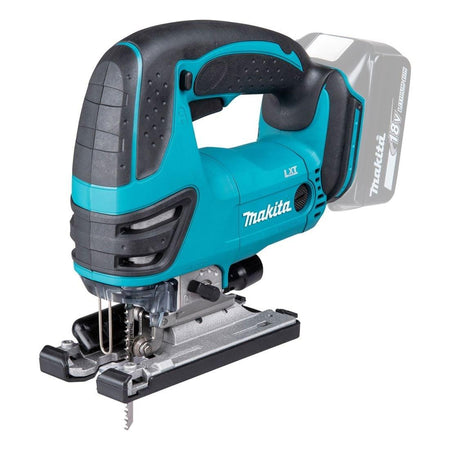

Makita DJV180Z 18V LXT Jigsaw Body Only
The Makita DJV180Z 18V LXT Jigsaw delivers precise and efficient cutting performance with a powerful variable-speed motor and three-stage pendulum action. Featuring a 26mm stroke length, it cuts up to 135mm in wood and 10mm in steel with ease. The tool-less blade change system, ergonomic rubber grip, and integrated LED work light enhance user convenience and control. Built-in battery protection safeguards against overload, over-discharge, and overheating for reliable long-term operation.
Features:
An efficient saw with three-stage pendulum action and tool-less blade change.
Engine speed can be adjusted between 0 and 2 600 min⁻¹ from a switch to suit the material.
A stroke length of 26 mm and cutting capacity of 135 mm in wood and 10 mm in steel.
3 orbital settings
The rubber coating on the handle ensures a firm working grip
Tool-less blade change for fast blade installation and removal
LED light illuminates the work site
Battery protection circuit protects against overloading, over-discharging and over-heating
Comes With:
1 x Anti-splintering Device (415524-7)
1 x Cover Plate (417852-6)
1 x Dust Nozzle (417853-4)
1 x Hex Wrench (783202-0)
Product Specification:
Part Number: DJV180Z
Barcode: 0088381662710
Voltage LXT: Yes
Nominal Battery Voltage: 18V
Battery Chemistry: Li-ion
Strokes per Minute (SPM): 0 - 2600 min⁻¹
Length of Stroke: 26 mm
Max. Cutting Capacity in Wood (90°): 135 mm
Max. Cutting Capacity in Steel (90°): 10 mm
Capacity Aluminium: 20 mm
Orbital Action: Yes
Max. Bevel Range (Right): 0 - 45 º
Electronic brake: Yes
Tool weight with battery: 2,7 - 3,0 kg
Product Dimensions (L x W x H): 257 x 73 x 208 mm
Max. Bevel Range (Left): 0 - 45 º
Vacuum cleaner connection Ø in / out: 25 / 31 mm
Vibration Level, Cutting Boards: 7,0 m/s²
Vibration Uncertainty (K Factor), Cutting Boards: 1,5 m/s²
Vibration Level, Cutting Sheet Metal: 3,5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1,5 m/s²
Sound Power Level (LWA): 95 dB(A)
Sound Pressure Level (LpA): 87 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
