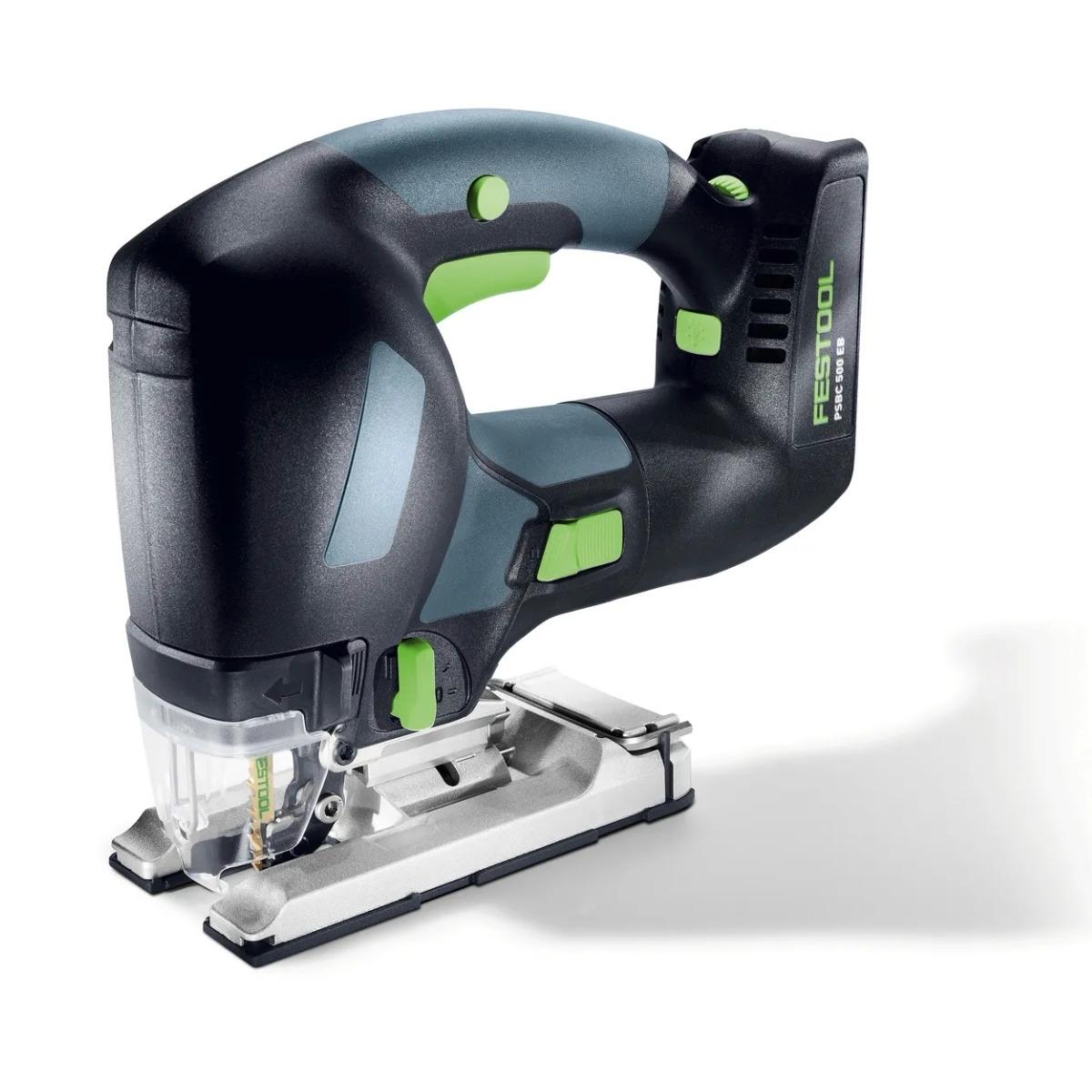

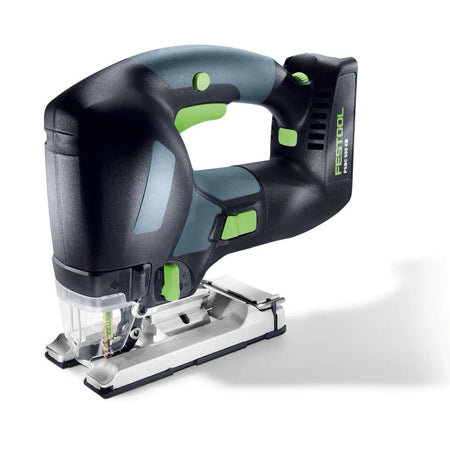

Festool PSBC 500 EB-Basic 18V Brushless Pendulum Jigsaw Body Only in Systainer - 576972
The cordless pendulum jigsaw PSBC 500 sets new standards: With a cutting depth of up to 120 mm and powerful traction even through solid wood, it tackles every challenge – from large cross-sections to tight curves. The three-way saw blade guide ensures precise, angle-accurate cuts. Thanks to smart accessories such as the circle cutter, your jigsaw becomes a true multi-purpose tool. The powerful and ergonomic TBX 4 battery ensures rapid progress and is compatible with all your 18V cordless tools and chargers. The PSBC 500 delivers on its promises: Precision, versatility, and uncompromising power – for professionals who demand more.
Features:
Versatile: excels in large cross-sections in solid wood, tight curves or angled cuts with a cutting depth of up to 120 mm and intelligent accessories.
Precise: Enhanced three-point guidance and guiding jaws ensure accurate, angle-true cuts.
Powerful: Consistent torque thanks to an advanced machine concept – effortless even with large cross-sections in solid wood.
Unobstructed view: Blowing function, deactivatable lighting and extraction ensure a clear view of the scribe mark.
Time-saving: Tool-free FastFix saw blade replacement saves time and facilitates uninterrupted work.
Optimal cutting quality: The splinter guard minimises splintering on both sides – delivering clean cut edges and reducing the need for reworking.
Suitable for the material: Adjustable speed and automatic startup for precise operation and efficient cuts.
Sawing progress: The pendulum stroke can be promptly adjusted to meet the specific requirements – ensuring swift feed and accurate results.
Angle-accurate: The table can be adjusted for angled cuts and locks at 0° – for precise 90° cuts.
Stay Connected: Access operating data, accessories, and extractor control via Bluetooth and the Festool app. versatile in application with ingenious accessories for cutting depths up to 120 mm
Main Applications:

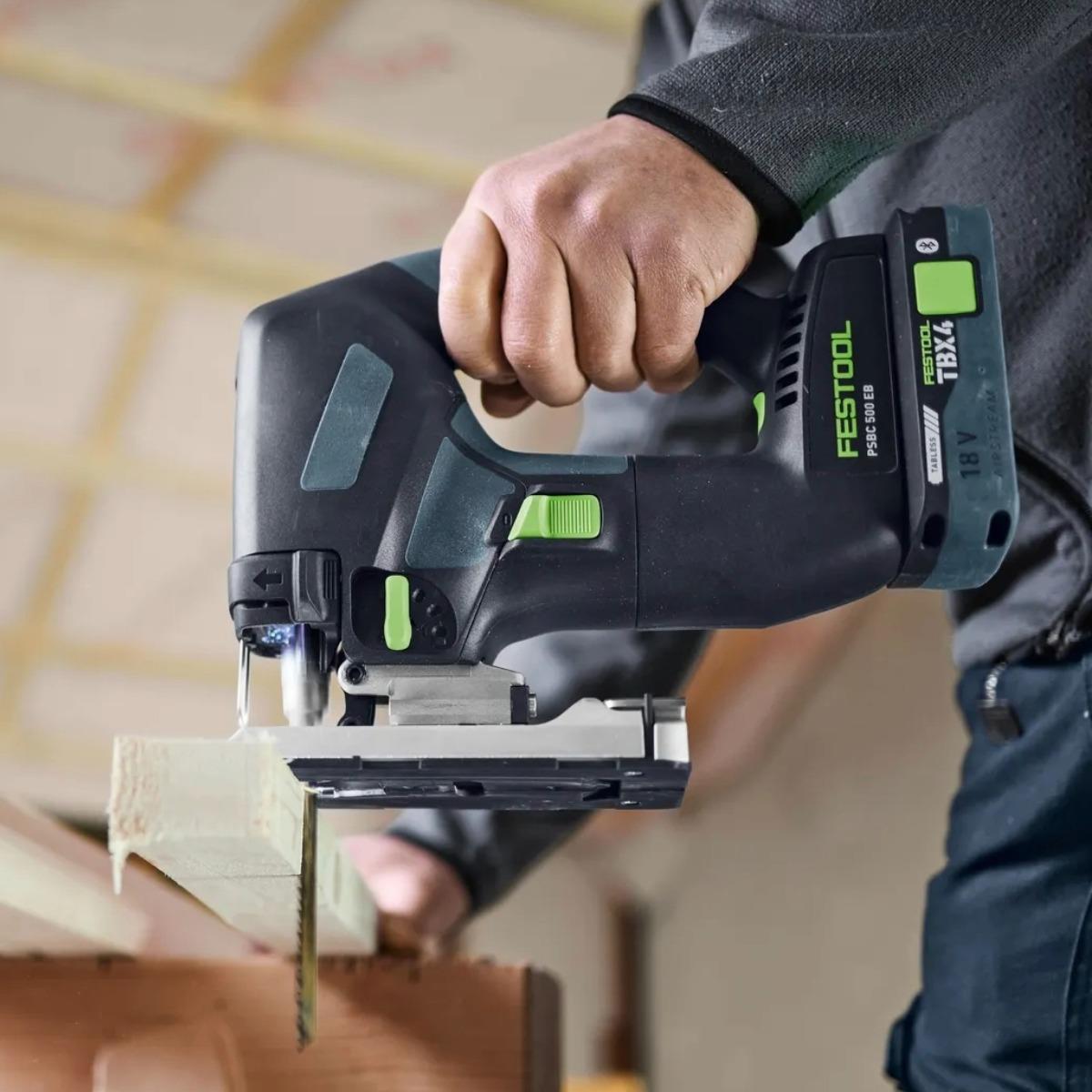

Precise separation and adjustment cuts in wooden components such as beams, rafters, and purlins up to 120 mm.
Precise cutting of formwork, terrace boards and stair treads to exact contours.
Cutting insulation and sandwich panels with steel/OSB facings.
Customisation work on furniture, kitchens, interior fittings.

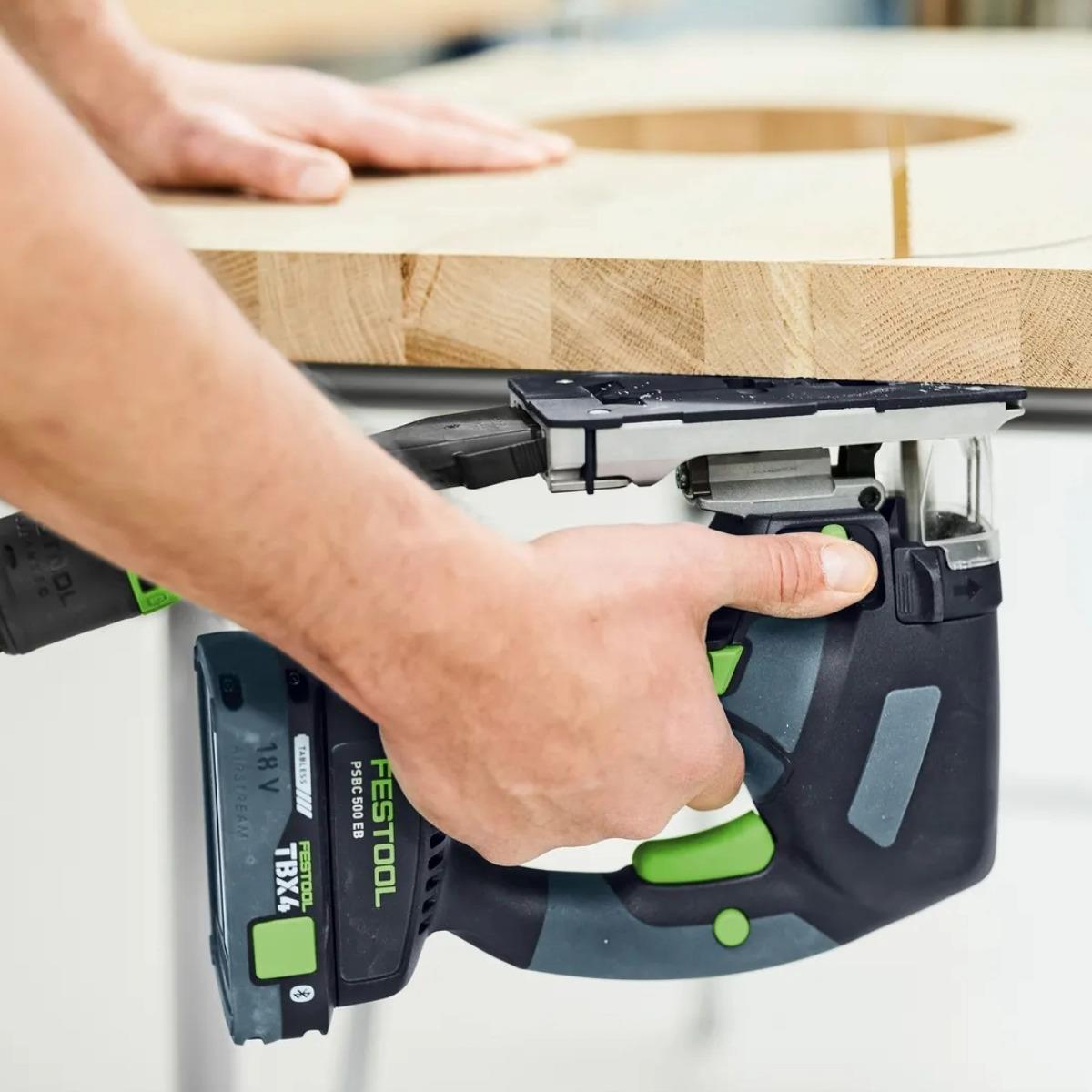

Cut-outs for sinks and kitchen hobs
Cutting circles and curves
Slanted cuts.

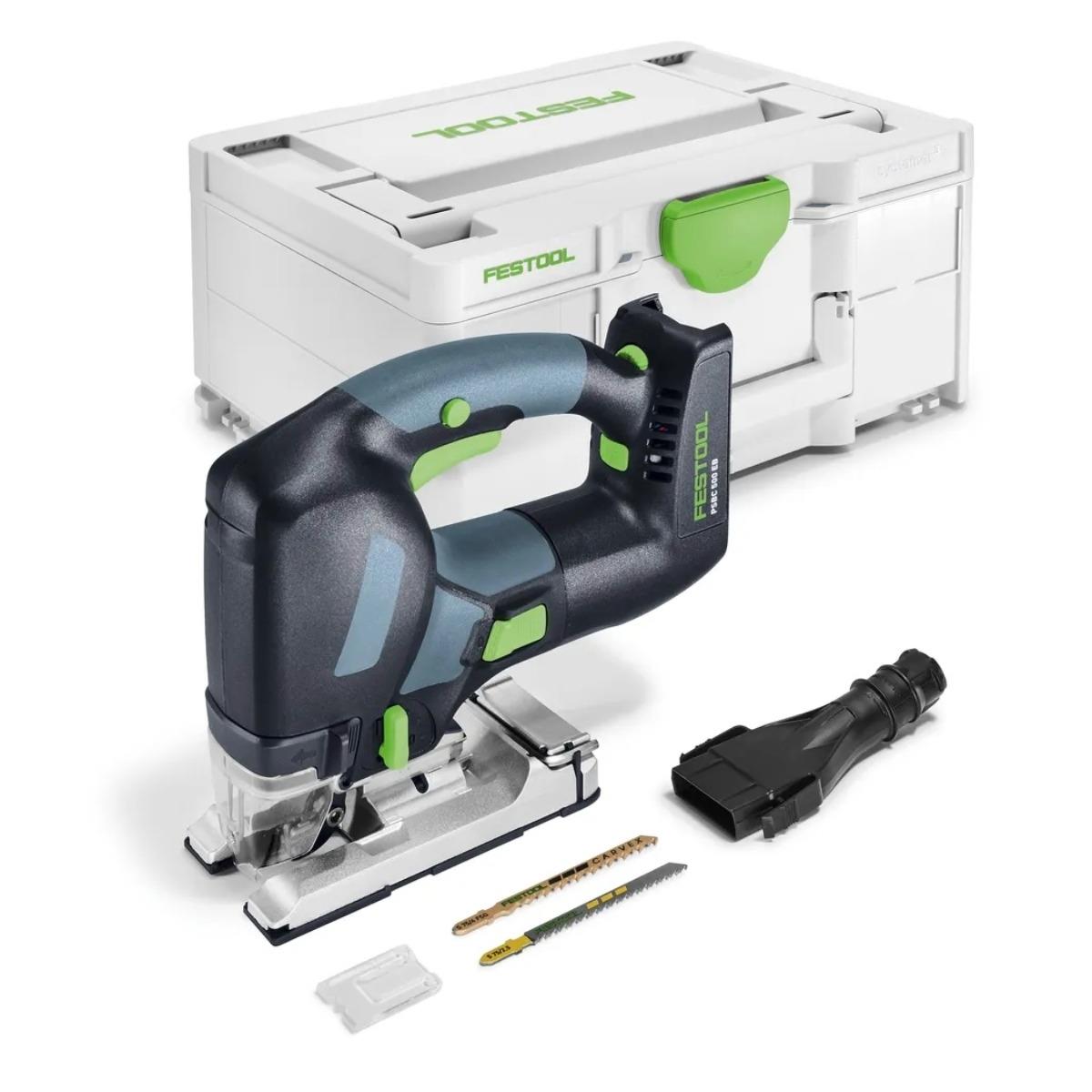

Comes With:
1 x WOOD FINE CUT S 75/2.5 Jigsaw Blade
1 x WOOD UNIVERSAL S 75/4 FSG Jigsaw Blade
1 x Splinter guard
1 x Extractor Connector
1 x SYS3 M 187 Systainer
Product Specification:
Part Number: 576972
Barcode: 4014549389614
Battery voltage (rated voltage): 18V
Stroke rate: 1000 - 3800 min⁻¹
Pendulum cover adjustment in stages: 4.00
Stroke length: 26.00 mm
Cutting depth in wood: 120.00 mm
Cutting depth in NF metals: 20.00 mm
Cutting depth in steel (soft): 10.00 mm
Max. inclined position (both sides): 45.00 °
Drive type: Battery
Product weight without accessories: 2.40 kg
Transport weight incl. accessories: 4.80 kg
Centre: 26.00 mm
Noise and vibration values
Sawing chipboard: Total vibration average, Ah: 7.00 m/s²
Sawing chipboard: Standards series EN: 62841
Sawing chipboard: Uncertainty (noise) K: 5.00 dB
Sawing chipboard: Uncertainty (vibration) K: 1.50 m/s²
A-weighted sound pressure level, LpA: 91.00 dB(A)
Sawing chipboard: A-weighted sound power level, LWA: 99.00 dB(A)
images for illustrative purposes only – please refer to description and specification for full details of product
